Light Duty Horizontal Roll Handlers

Portable Roll Handing Products

Simplify your operations with Light Duty Horizontal Roll Handlers. Make manipulating and lifting a roll easy, ergonomic and improve productivity with any one of these flexible roll handling models!

Sliding Forks Roll Handling

13200 Series Sliding Forks

The 13200 Series of Sliding Forks are designed for the Lift-O-Flex Series of Ergonomic Lifters. The unit generally handles rolls weighing 60 pounds or less with approximately a 10” stroke. Forks and then extended and manually retraced with a locking detent for the retracted position.

Standard Weight Limit: 60 lbs | Learn More | Request a Quote

Adjustable Roll Handling Core Probe

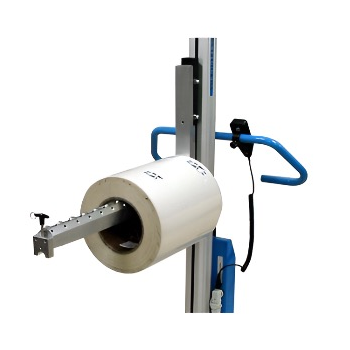

12116 Series Adjustable Core Probe

Designed for Lift-O-Flex systems; The 12116 Series Adjustable Core Probe can handle capacities up to 160 pounds but larger capacities are available upon request. Without the need for auxiliary equipment, rolls which need to be offset loading can be loaded onto spindles. Depending on loading requirements the same core probe that is used for centre access can be adjusted either to the right or left.

Standard Weight Limit: 160 lbs | Learn More | Request a Quote

Lift-O-Squeeze Roll Handling

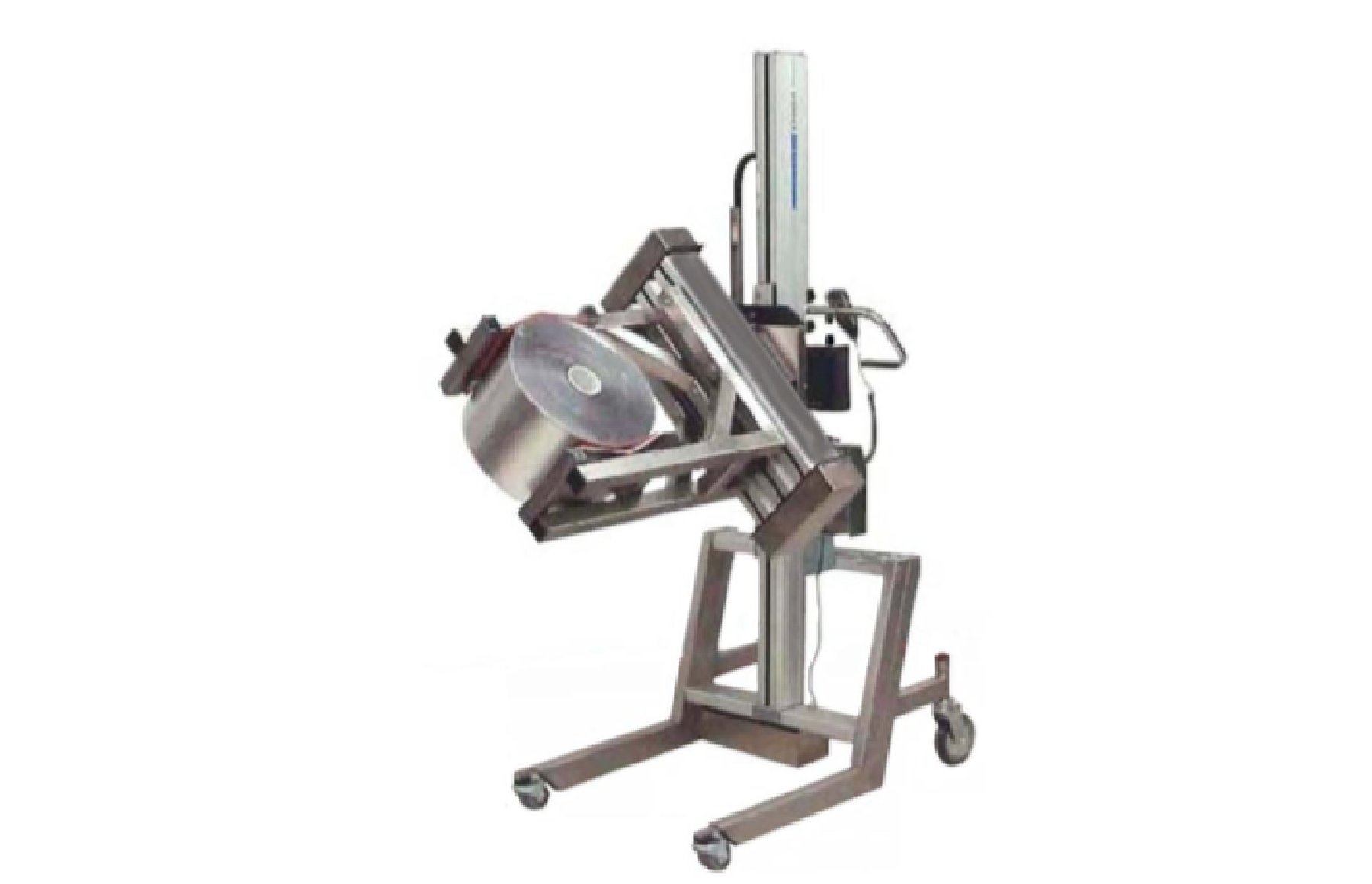

12143 Lift-O-Squeeze

The 12134 Lift-O-Squeeze is designed for the Lift-O-Flex series of Ergonomic lifters. This device makes use of standard components to create a product that does it all when it comes to lifting rolls, drums, cartons and barrels weighing up to 170 pounds. The Lift-O-Squeeze adapts to different load sizes and is easy to configure. It will also never damage the products that it works with due to its gentle and controllable force throughout the entire operating process.



Standard Weight Limit: 170 lbs | Learn More | Request a Quote

Telescopic Mast Roll Handling

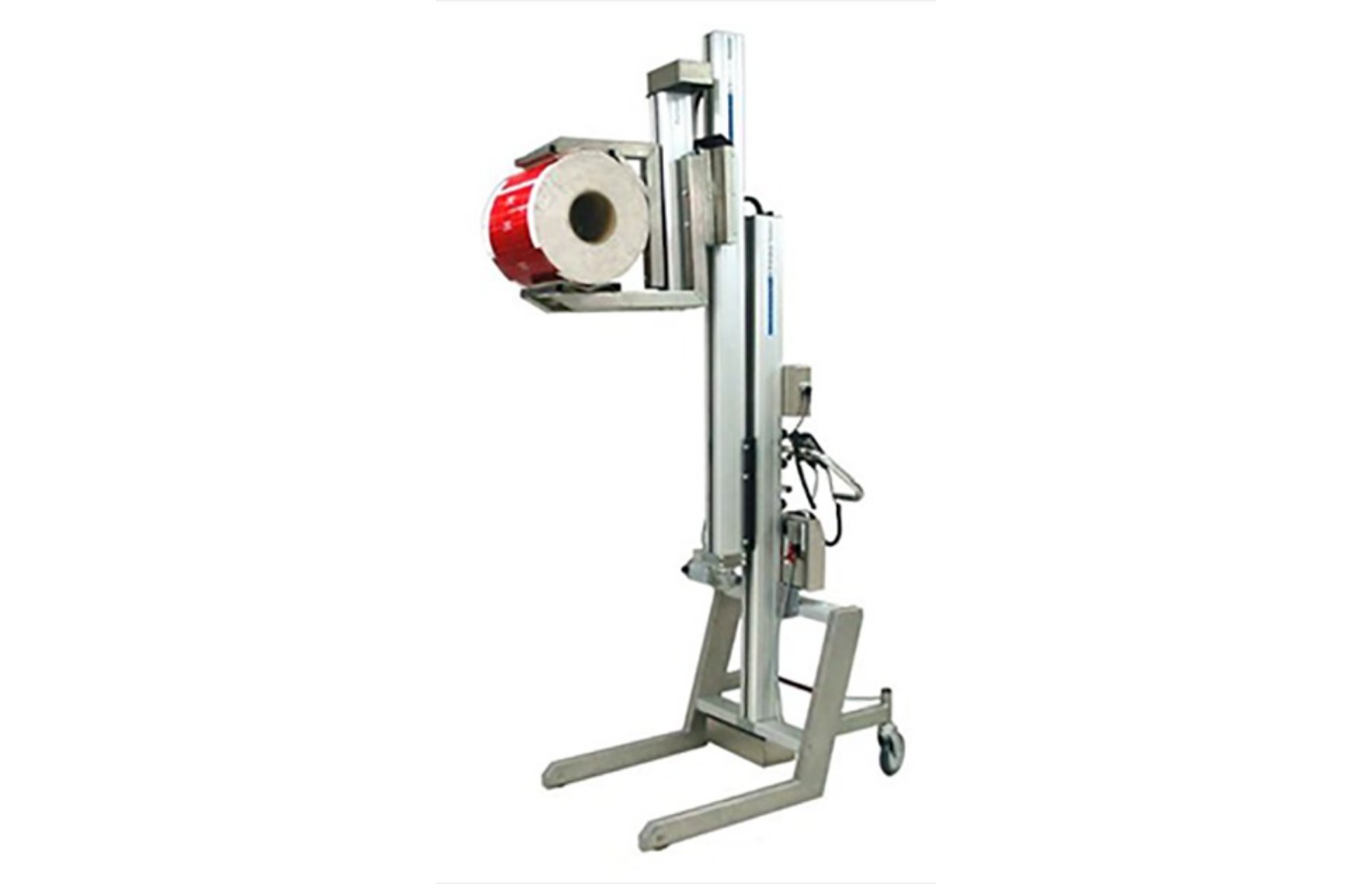

17182 Telescopic Mast Kit

The Telescopic Mast is perfect for load handling when working at heights that are higher than normal. The units allow the operator to maintain normal operations when overhead heights are restricting. An example of this would be in a doorway, mezzanines and general production equipment.

Standard Weight Limit: 170 lbs | Learn More | Request a Quote

Expand-O-Turn Roll Handling

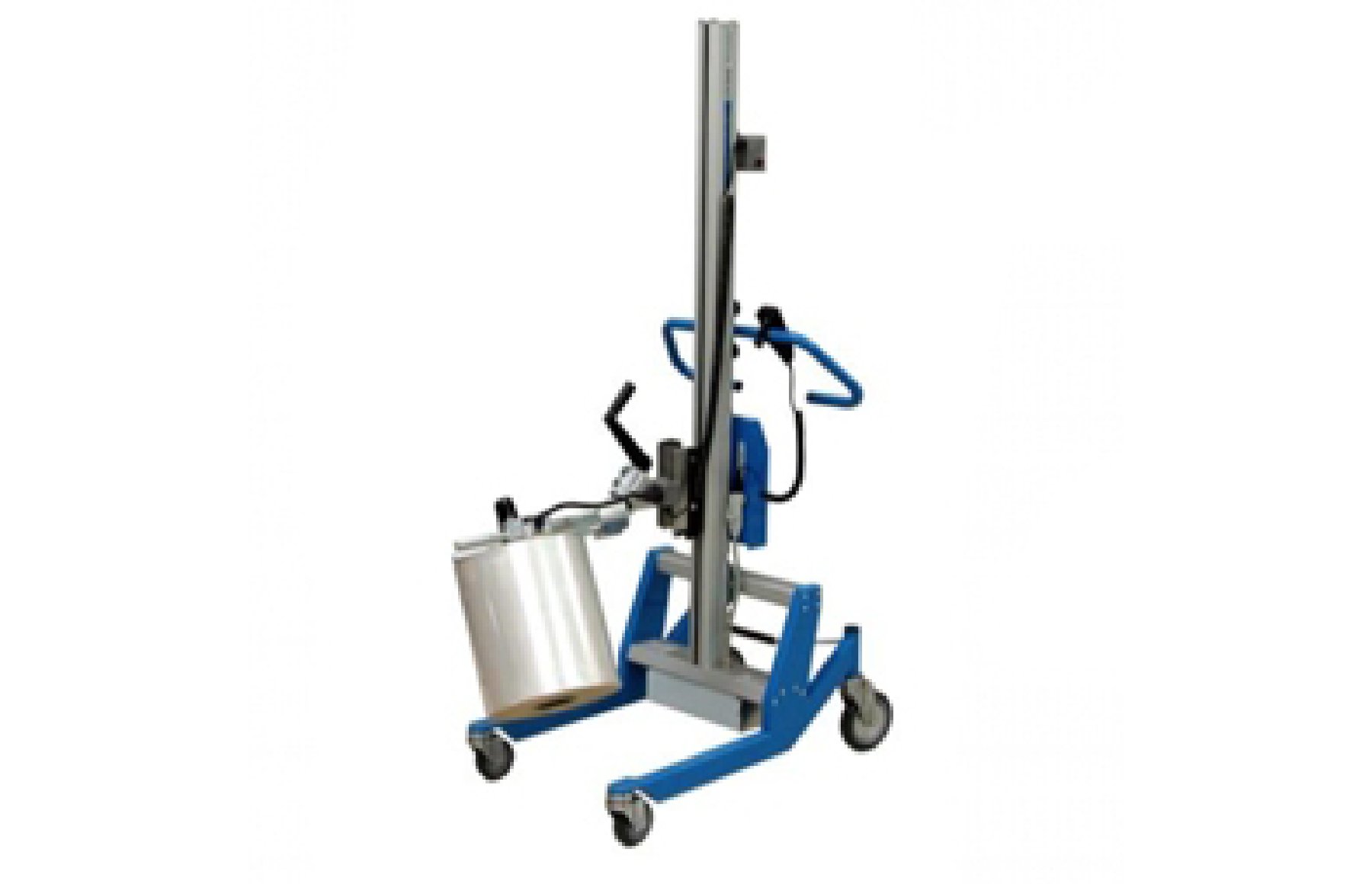

12154 Expand-O-Turn Cross Roll Adapter

Reduce the number of machines you need with this revolutionary roll lifter. The 12154 Expand-O-Turn allows for you to receive cores on a vertical shipping pallet as well as place them on a machine core horizontally all the while using the same lifter!

Standard Weight Limit: 275 lbs | Learn More | Request a Quote

Pneumatic Expand-O-Turn Roll Handling

17970 Series Pneumatic Expand-O-Turn

Built for paper and film rolls that have a variety different core sizes, the Expand-O-Turn uses a DC powered compressor for core expansion. Rolls of varying dimensions can be handled that weigh up to 300 pounds. At floor/ pallet level, the Expand-O-turn picks up rolls from the vertical position and deposits them at random heights in the horizontal position.

Standard Weight Limit: 300 lbs | Learn More | Request a Quote

Squeeze-O-Turn

12120 Series Squeeze-O-Turn

The Squeeze-O-Turn combines the Lift- O-Turn and Lift-O-Squeeze components to create a product that assists in providing load handling for lifting and rotating rolls, barrels, drums, buckets and boxes. The Squeeze-O-Turn mounts to standard LIFT-O-FLEX Lifters and is powered by the Electronic Power Pack.

Standard Weight Limit: 300 lbs | Learn More | Request a Quote

Manual Winch Lift Horizontal Roll Handler

Manual Winch Lift Horizontal Roll Handler

The MRH-300-P portable roll handling machine is a versatile tool for many lifting applications. Designed for portability, ease of use and affordability, the MRH-300-P gives operators a safe, cost-effective alternative to “manhandling” valuable products.

Standard Weight Limit: 300 lbs | Learn More | Request a Quote

Series Expand-O-Turn

12107-1 Series Expand-O-Turn

The 12107-1 Series Electric Expand-O-Turn is an electrically operated core expander for paper and film rolls with 3” and 6” cores and allows for manually rotating the roll. Rolls of varying dimensions, weights up to 300-lbs (depending on roll size), can be picked up from the vertical position at floor/pallet level and deposited at random heights in a horizontal position.

Standard Weight Limit: 300 lbs | Learn More | Request a Quote

Portable Electric Roll Handler

ERH-400 Portable Electric Roll Handler

The revolutionary ERH-400 portable electric roll handling machine is half the size and weight of previous models, yet has 25% more lifting capacity! It is used to lift and turn rolls by the core for palletizing, transporting and loading.

Standard Weight Limit: 400 lbs | Learn More | Request a Quote

V Block Roll Handling

Off Set "Rotating V" Block

Do you need to handle rolls with multiple drop off locations? R&D has the solution, The Off-Set Rotating “V” Block. Rolls can be rotated 90 degrees with a locking dent that is located under the “V” Block. Cross roll handling is achieved by rotating rolls onto spindles or a shaft can be inserted for off-loading to bearing blocks.

Standard Weight Limit: 450 lbs | Learn More | Request a Quote

19000/19500 Ergonomic Roll Handling

19000/19500 Lift-O-Flex Series Ergonomic Lifter

This ergonomic lifter offers dynamic load handling characteristics for heavy load capacities. The 19500 provides a lift capacity of 500 pounds and the 19000 provides a lift capacity of 350 pounds. R&D will better fit your ergonomic lifting requirements with the promise of expanded flexibility in equipment selection.

Standard Weight Limit: 500 lbs | Learn More | Request a Quote

Easy Lift Roll Manipulator

Easy Lift Roll Manipulator

Easily move rolls through congested areas of your company with the addition of this roll handling unit.

Standard Weight Limit: 500 lbs | Learn More | Request a Quote

Easy Lift Roll Transporter

Easy Lift Roll Transporter

With the addition of this roll handling unit you will be able to safely and efficiently move rolls throughout your facility.

Standard Weight Limit: 600 lbs | Learn More | Request a Quote

Portable Electric Roll Handler

ERH-700 Portable Electric Roll Handler

The ERH-700 portable electric roll handling machines are used to lift and turn rolls by the core for palletizing, transporting and loading.

Standard Weight Limit: 700 lbs | Learn More | Request a Quote

Freedom Plus

Freedom Plus

The Freedom Plus lifter is designed for handling heavy loads up to 770 lbs and has a variety of heights available in order to ensure it can meet all of your material handling needs.

Standard Weight Limit: 770 lbs | Learn More | Request a Quote

Horizontal Roll Handler

HRH-1000 Narrow Web Lifter

HRH-1000-PRP gives operators a low-cost, safe alternative to “manhandling” cherished products. Ease of use, portability, and flexibility were all kept in mind when designing this unit. The HRH-1000-PRP is a multipurpose tool for many conveying applications including die cutters, inspection machines and much more

Standard Weight Limit: 1000 lbs | Learn More | Request a Quote
