Light Duty Lift and Turn Roll Handlers

Light Duty Portable Roll Handling
Lift and Turn Roll handlers lift and turn rolls varying in size and shape by the core or by clamping on the outside of the roll for loading, palletizing and transporting.  R&D’s wide variety of models can solve anyone’s roll handling issues. Increase your productivity, protect your material and care for your operators through the use of our quality roll handling solutions!

Anti-Telescopic Attachment for Roll Handling

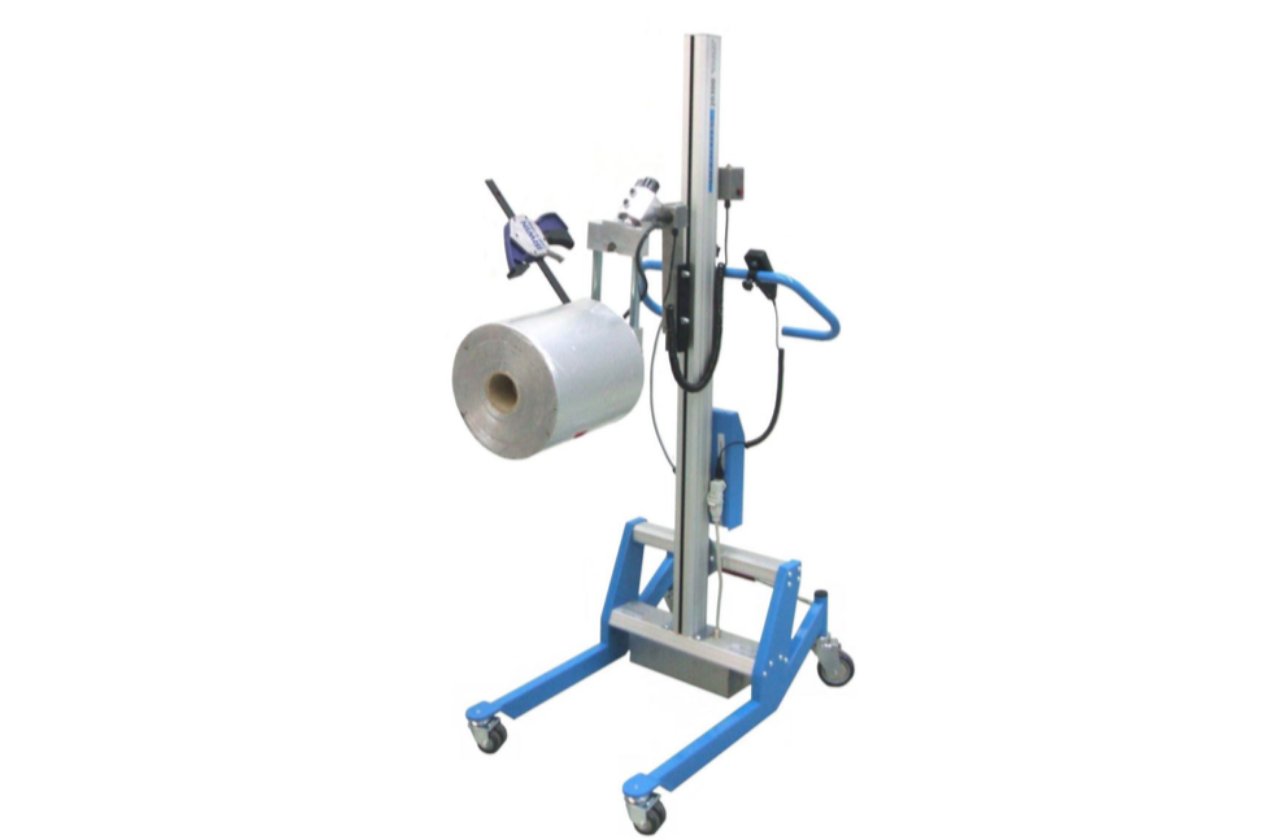

12108 Series Anti-Telescopic Attachment

The Anti-Telescopic Attachment is manually operated and is used to stabilize the rolls before they are rotated for placement onto spindles. This attachment’s function is to stabilize the outer wraps on the rolls that tend to the telescope. This attachment helps to eliminate the unsafe conditions which commonly occur during the roll handling process without damaging the rolls.



Standard Weight Limit: 100 lbs | Learn More | Request a Quote

Expand-O-Turn Roll Handling

12107 - R Series Electric Rotate Kit

Roll handling with just the touch of a button! The 12107-R Series Electric Rotate Kid is designed for Lift-O-Flex lift systems. This is an optional electric rotating tip that delivers the powered rotation of rolls from cores horizontal to vertical (or vertical to horizontal) for the Expand-O-Turn.

Standard Weight Limit: 100 lbs | Learn More | Request a Quote

Expand-O-Turn Narrow Roll Handling

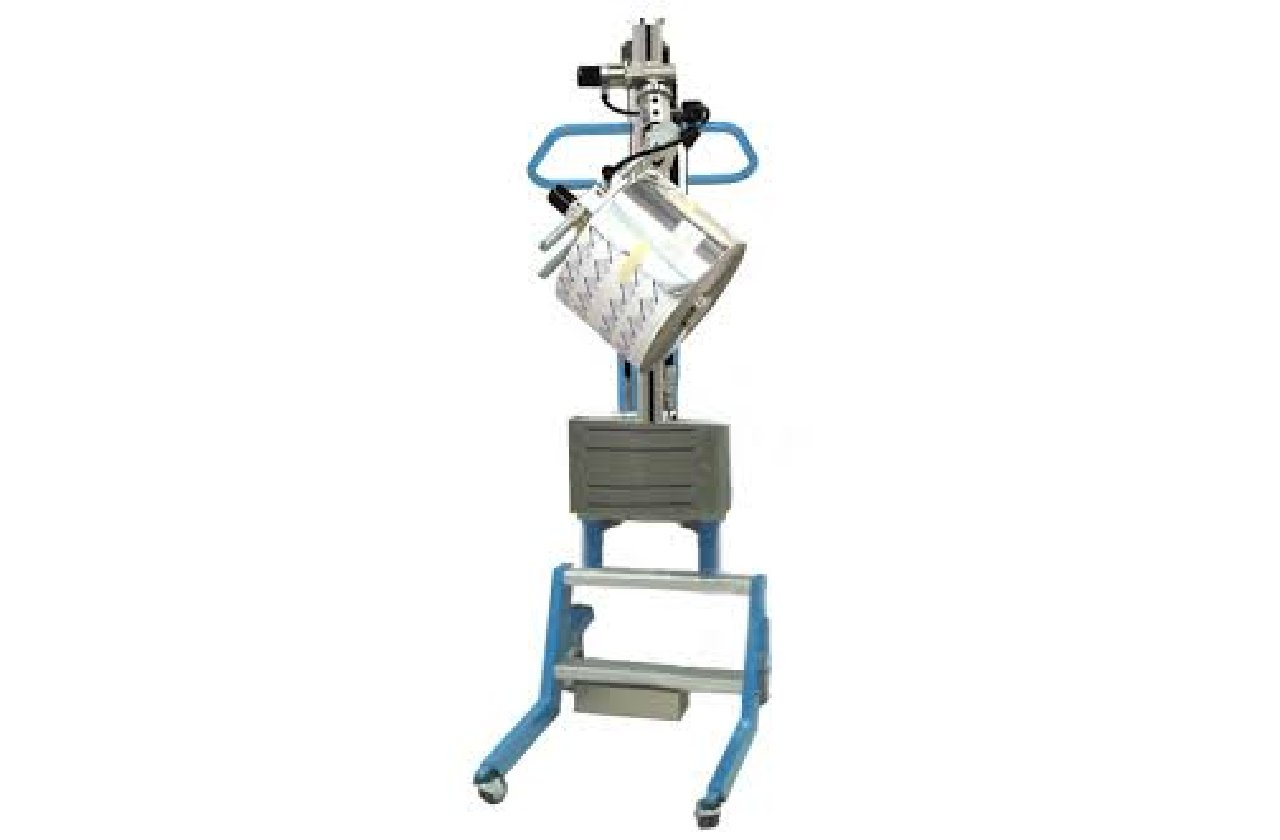

Expand-O-Turn Narrow Roll Handling

Now rolls with a number of different widths can be handled by the Expand-O-Turn. Specific load handing is dependent on the rolls weight, lift and diameter. This device uses position stops which are placed on the expander, allowing for you to lift a variety of different rolls of different sizes.

Standard Weight Limit: 100 lbs | Learn More | Request a Quote

ERH-200 Portable Electric Roll Handler

ERH-200 Portable Electric Roll Handler

This lightweight electric powered material lifting unit. With plenty of different tooling options, this unit is great for almost all low capacity roll handing situations.

Standard Weight Limit: 100 lbs | Learn More | Request a Quote

Tip Module Roll Handling

Tip Module

The Tip Model attachment offers an additional axis of movement that allows for elevation changed necessary for load drop off and pick up. The Tip module can be mounted to custom or standard end-effectors. Electronic devices, rolls, totes, drums and cartons can all be safely and efficiently be handled with the Tip Module attachment.

Standard Weight Limit: 200 lbs | Learn More | Request a Quote

Cloth Roll Handling Unit

80015 Cloth Roll Handling

This Vertical to Horizontal Roll Handler uses the SQUEEZE-O-TURN end effector and standard LIFT-O-FLEX configuration. It has long grippers for better roll configuration. It can easily handle large/small diameter rolls with its long grippers for better roll control without causing any damage to the material which it is transporting.

Standard Weight Limit: 200 lbs | Learn More | Request a Quote

Electric Powered Roll Handling

12156 Series Powered Assist Devices

Handle heavy or awkward shaped loads on/off the end effector safely and efficiently with this product! The 12156 Powered Assist Device gives you the best of both worlds; an ergonomically designed lifter paired with an electric powered assist for effortlessness load manipulation!

Standard Weight Limit: 200 lbs | Learn More | Request a Quote

Series 2 Expand-O-Turn Roll Handling

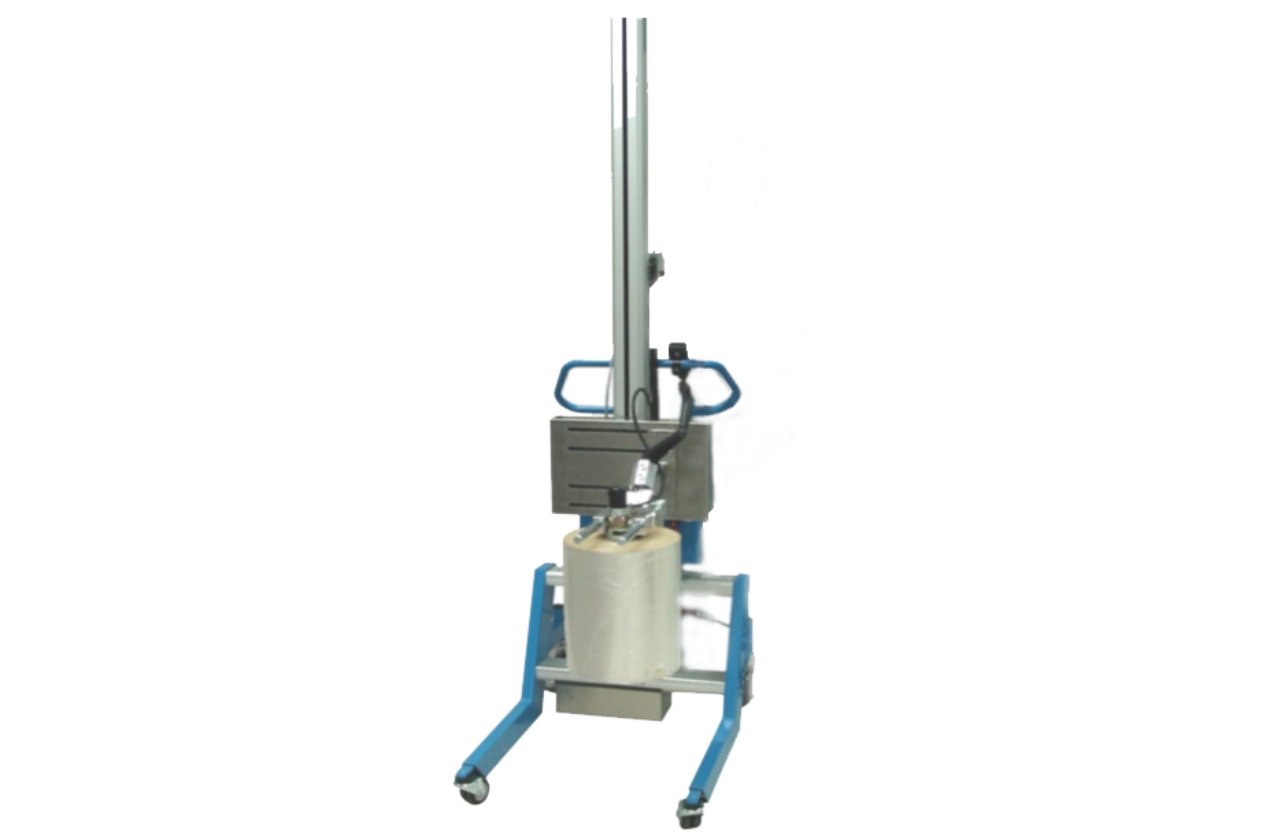

12107-2 Series Expand-O-Turn

The 12107-2 Series Expand-O -Turn is primarily used for mounting operations. The Powered Offset Expand-O-Turn has an electric adjustment and a manual option with locking dents where both sides mast to the centerline. The Fixed Offset Expand-O-turn has a fixed distance left or right of the centerline.

Standard Weight Limit: 200 lbs | Learn More | Request a Quote

Series 3 Expand 0 Turn Roll Handling

12107-3 Series Expand-O-Turn - Air Activated

The 12107-3 Series Expand-O-Turn is an air- activated core expander for paper and film rolls designed for all Lift-O-Flex Lift systems. It can lift rolls from of varying dimensions with 3” and 6” cores weighing up to 250 pounds from the vertical position at floor/pallet and place them at random heights in a horizontal position.

Standard Weight Limit: 250 lbs | Learn More | Request a Quote

Expand-O-Turn

12107-1 Series Expand-O-Turn

The 12107-1 Series Electric Expand-O-Turn is an electrically operated core expander for paper and film rolls with 3” and 6” cores and allows for manually rotating the roll. Rolls of varying dimensions, weights up to 300-lbs (depending on roll size), can be picked up from the vertical position at floor/pallet level and deposited at random heights in a horizontal position.

Standard Weight Limit: 300 lbs | Learn More | Request a Quote

Squeeze-O-Turn

12120 Series Squeeze-O-Turn

The Squeeze-O-Turn combines the Lift- O-Turn and Lift-O-Squeeze components to create a product that assists in providing load handling for lifting and rotating rolls, barrels, drums, buckets and boxes. The Squeeze-O-Turn mounts to standard LIFT-O-FLEX Lifters and is powered by the Electronic Power Pack.

Standard Weight Limit: 300 lbs | Learn More | Request a Quote

Flexographic Roll Handling

Flexographic Plate - Sleeve Tube and Plastic Handling

R&D’s Flexographic Sleeve, Tube and Plate Handling solutions will meet all of your needs! The sleeve is picked up and rotated by the operator controls. They are all designed for the Lift-O-Flex Series of Ergonomic Lifters. Electric Actuated Forward Tip on Squeeze-O-Turn Is designed for the 2000 Series of Ergonomic Lifters.

Standard Weight Limit: 300 lbs | Learn More | Request a Quote

Roll Carts

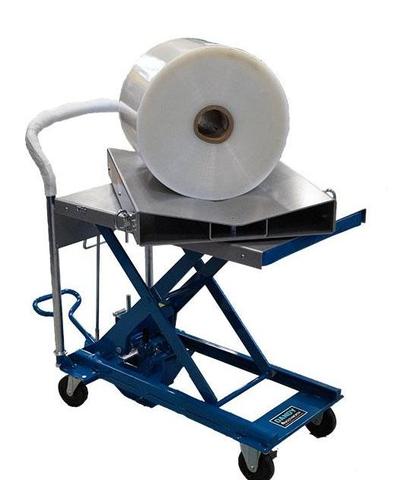

HRC-330-PV90 Roll Carts

HRC portable hydraulic powered roll handling carts make lifting and transporting rolls and other heavy items safely and easily.

Standard Weight Limit: 330 lbs | Learn More | Request a Quote

Double Mast Squeeze-0-Turn Roll Handling

12133 Series Double Mast Squeeze-O-Turn

The Double Mast Squeeze-O-Turn automatically centres loads onto the Lift-O-Flex and can handle loads up to 400 pounds. This product is a combination of the Lift-O-Turn and the Double-Mast-Lift-O-Squeeze which when put together creates a product that provides load handling for lifting & rotating rolls, barrels, buckets and boxes.

Standard Weight Limit: 400 lbs | Learn More | Request a Quote

Manual Portable Roll Handlers

Manual Portable Roll Handlers

Schlumpf’s MRH series of portable manual handling machines is a versatile tool for many lifting applications. Designed with portability, ease of use and affordability in mind.

Standard Weight Limit: 500 lbs | Learn More | Request a Quote

Roll Carts

HRC-550-PVO Roll Carts

HRC portable hydraulic powered roll handling carts make lifting and transporting rolls and other heavy items safely and easily.

Standard Weight Limit: 550 lbs | Learn More | Request a Quote

VCRD-1000 Roll Dollies

VCRD-1000 Roll Dollies

These rugged roll dollies are built with a steel construction and have a powder coated finish, and is durable and can handle the heaviest loads with ease.

Standard Weight Limit: 1,000 lbs | Learn More | Request a Quote

Roll Carts

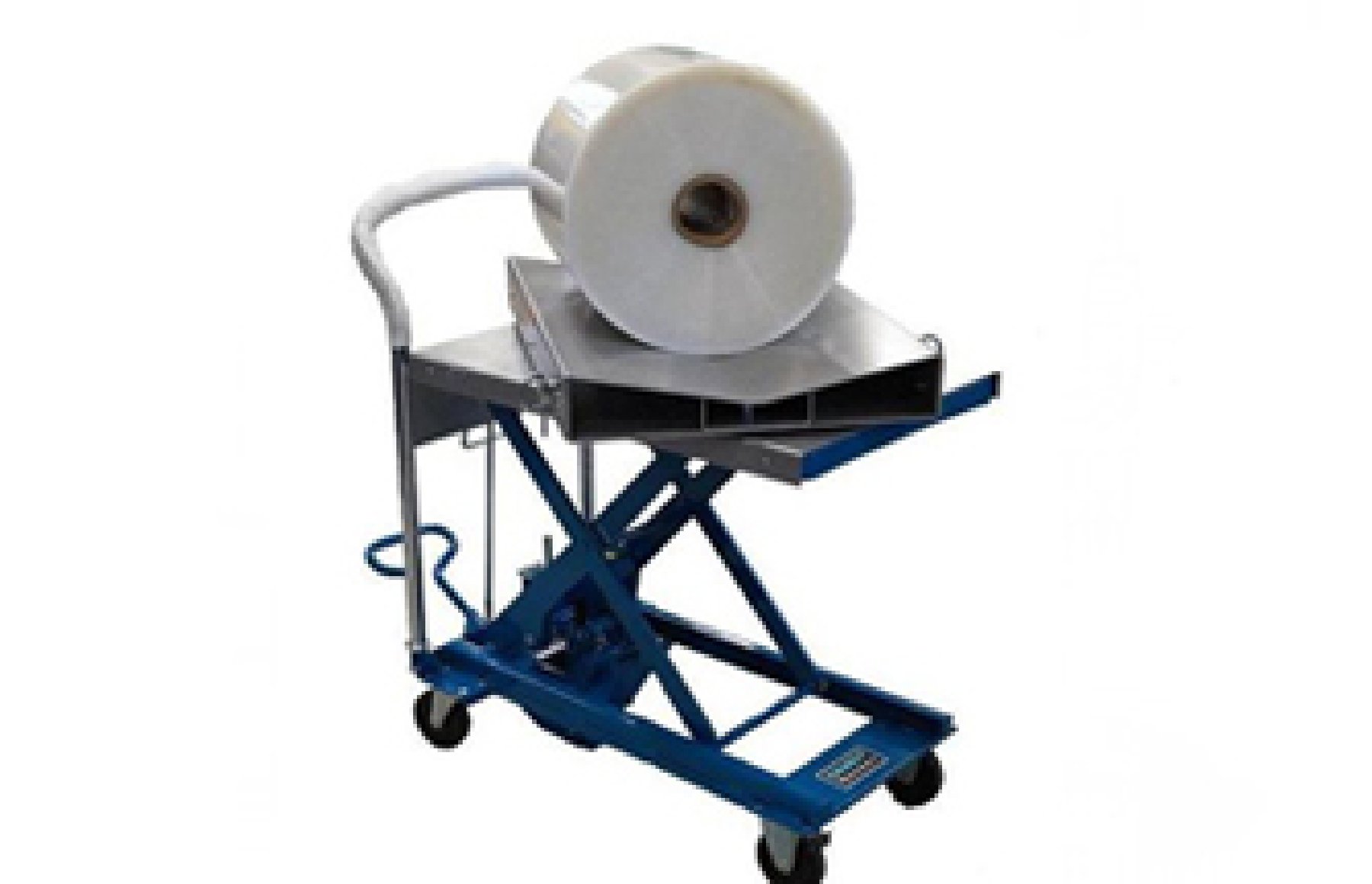

HRC-1100-PV90 Roll Carts

HRC portable hydraulic powered roll handling carts make lifting and transporting rolls and other heavy items safely and easily.

Standard Weight Limit: 1,100 lbs | Learn More | Request a Quote
