Free Standing Articulating Jib Crane, 250lbs Capacity
These articulating jib cranes have a 250 lbs capacity and can position loads in places that are unable to be reached with traditional jib cranes.
These jib cranes provide easy rotation and consistent responsiveness when positioning loads within the cranes’ coverage area. Articulating jib cranes can handle up to 200 degrees rotation for the primary boom and up to 360 degrees for the secondary boom.

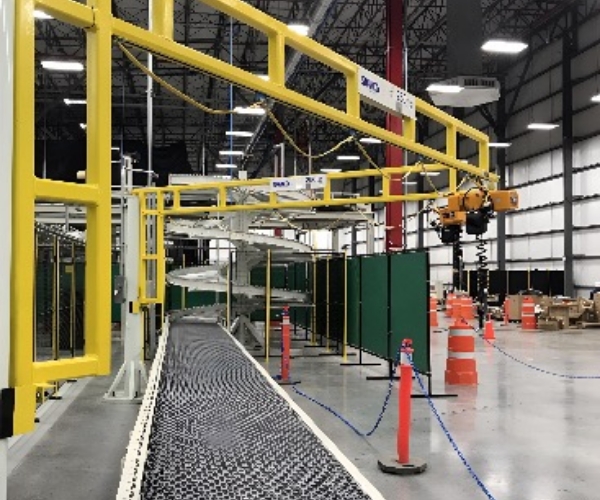

Higher Capacity Needed?
This line of free standing articulating jib cranes features capacities that range up to 2000 lbs.
- Articulating jib cranes are easier to rotate close to the free-standing mast or building column when compared to traditional jib cranes.
- These jib cranes enable precise load positioning and spotting loads around obstructions, through open doorways or rotating in closest the free-standing mast or building column.
| HUB (B) | Span | Model Number | Weight | J | OAH (C) | TS | P | K | T | L | M | E | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8′ | 8′ | AJ360-F-250-8-8 | 735 lbs | 100″ | 109-1/8″ | 93-1/2″ | 1″ | 36″ | 3-5/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 8′ | 10′ | AJ360-F-250-8-10 | 835 lbs | 101″ | 112-5/8″ | 93-1/2″ | 1-3/4″ | 48″ | 3-15/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 8′ | 12′ | AJ360-F-250-8-12 | 950 lbs | 101″ | 112-5/8″ | 93-1/2″ | 1-3/4″ | 60″ | 3-15/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 8′ | 14′ | AJ360-F-250-8-14 | 985 lbs | 101″ | 112-5/8″ | 93-1/2″ | 1-3/4″ | 72″ | 3-15/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 8′ | 16′ | AJ360-F-250-8-16 | 1,255 lbs | 101″ | 112-5/8″ | 93-1/2″ | 1-3/4″ | 84″ | 3-15/16″ | 36″ | 48″ | 14″ | 11″ | 22″ |
| 10′ | 8′ | AJ360-F-250-10-8 | 800 lbs | 124″ | 133-1/8″ | 117-1/2″ | 1″ | 36″ | 3-5/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 10′ | 10′ | AJ360-F-250-10-10 | 900 lbs | 125″ | 136-5/8″ | 117-1/2″ | 1-3/4″ | 48″ | 3-15/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 10′ | 12′ | AJ360-F-250-10-10 | 1,015 lbs | 125″ | 136-5/8″ | 117-1/2″ | 1-3/4″ | 60″ | 3-15/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 10′ | 14′ | AJ360-F-250-10-10 | 1,050 lbs | 125″ | 136-5/8″ | 117-1/2″ | 1-3/4″ | 72″ | 3-15/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 10′ | 16′ | AJ360-F-250-10-10 | 1,365 lbs | 125″ | 136-5/8″ | 117-1/2″ | 1-3/4″ | 84″ | 3-15/16″ | 36″ | 48″ | 14″ | 11″ | 22″ |
| 12′ | 8′ | AJ360-F-250-12-8 | 865 lbs | 148″ | 157-1/8″ | 141-1/2″ | 1″ | 36″ | 3-5/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 12′ | 10′ | AJ360-F-250-12-10 | 970 lbs | 149″ | 160-5/8″ | 141-1/2″ | 1-3/4″ | 48″ | 3-15/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 12′ | 12′ | AJ360-F-250-12-12 | 1,080 lbs | 149″ | 160-5/8″ | 141-1/2″ | 1-3/4″ | 60″ | 3-15/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 12′ | 14′ | AJ360-F-250-12-14 | 1,405 lbs | 149″ | 160-5/8″ | 141-1/2″ | 1-3/4″ | 72″ | 3-15/16″ | 36″ | 48″ | 14″ | 11″ | 22″ |
| 12′ | 16′ | AJ360-F-250-12-16 | 1,475 lbs | 149″ | 160-5/8” | 141-1/2″ | 1-3/4″ | 84″ | 3-15/16″ | 36″ | 48″ | 14″ | 11″ | 22″ |
