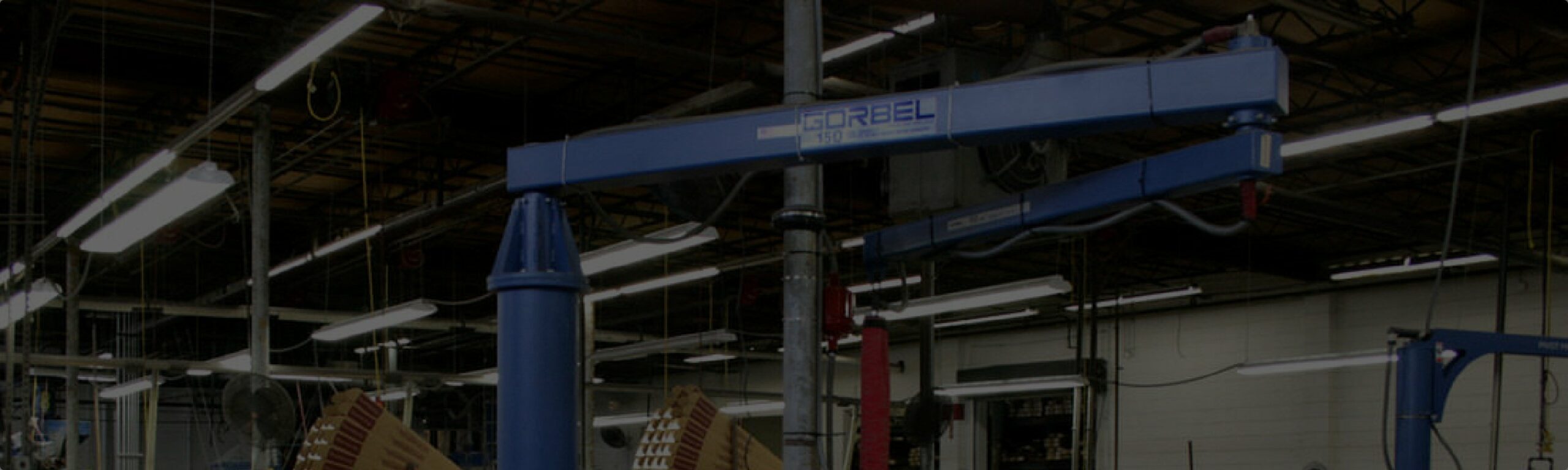

Free Standing Articulating Jib Crane, 1000lbs Capacity
These articulating jib cranes have a 1,000 lbs capacity and can position loads in places that are unable to be reached with traditional jib cranes.
These jib cranes provide easy rotation and consistent responsiveness when positioning loads within the cranes’ coverage area. Articulating jib cranes can handle up to 200 degrees rotation for the primary boom and up to 360 degrees for the secondary boom.
Higher or Lower Capacity
Each of these free standing articulating jib cranes are available in multiple capacities.
- Articulating jib cranes are easier to rotate close to the free-standing mast or building column when compared to traditional jib cranes.
- These jib cranes enable precise load positioning and spotting loads around obstructions, through open doorways or rotating in closest the free-standing mast or building column.
| HUB (B) | Span | Model Number | Weight | J | OAH (C) | TS | P | K | T | L | M | E | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8′ | 8′ | AJ360-F-1000-8-8 | 1,080 lbs | 102″ | 113-13/16″ | 93-1/2″ | 1-3/8″ | 36″ | 4-11/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 8′ | 10′ | AJ360-F-1000-8-10 | 1215 lbs | 102″ | 116-1/2″ | 93-1/2″ | 1-11/16″ | 48″ | 4-15/16″ | 48″ | 60″ | 12″ | 8-1/2″ | 20″ |
| 8′ | 12′ | AJ360-F-500-8-12 | 1,745 lbs | 102″ | 116-1/2″ | 93-1/2″ | 1-11/16″ | 60″ | 4-15/16″ | 48″ | 60″ | 16″ | 13″ | 26″ |
| 8′ | 14′ | AJ360-F-1000-8-14 | 2,010 lbs | 102″ | 116-1/2″ | 93-1/2″ | 111/16″ | 72″ | 4-15/16″ | 48″ | 60″ | 18″ | 15″ | 30″ |
| 8′ | 16′ | AJ360-F-1000-8-16 | 2,360 lbs | 103″ | 119-3/8″ | 93-1/2″ | 1-5/8″ | 84″ | 5-7/16″ | 48″ | 72″ | 18″ | 15″ | 30″ |
| 10′ | 8′ | AJ360-F-1000-10-8 | 1,145 lbs | 126″ | 137-13/16″ | 117-1/2″ | 1-3/8″ | 36″ | 4-11/16″ | 36″ | 48″ | 12″ | 8-1/2″ | 20″ |
| 10′ | 10′ | AJ360-F-1000-10-10 | 1,525 lbs | 126″ | 140-1/2″ | 117-1/2″ | 1-11/16″ | 48″ | 4-15/16″ | 48″ | 60″ | 14″ | 11″ | 22″ |
| 10′ | 12′ | AJ360-F-1000-10-10 | 1,870 lbs | 126″ | 140-1/2″ | 117-1/2″ | 1-11/6″ | 60″ | 4-15/16″ | 48″ | 60″ | 16″ | 13″ | 26″ |
| 10′ | 14′ | AJ360-F-1000-10-10 | 2,412 lbs | 126″ | 140-1/2″ | 117-1/2″ | 1-11/16″ | 72″ | 4-15/16″ | 48″ | 60″ | 20″ | 17″ | 34″ |
| 10′ | 16′ | AJ360-F-1000-10-10 | 2,775 lbs | 127″ | 143-3/8″ | 117-1/2″ | 1-5/8″ | 84″ | 5-7/16″ | 48″ | 72″ | 20″ | 17″ | 34″ |
| 12′ | 8′ | AJ360-F-1000-12-8 | 1,495 lbs | 150″ | 161-13/16″ | 141-1/2″ | 1-3/8″ | 36″ | 4-11/16″ | 36″ | 48″ | 14″ | 11″ | 22″ |
| 12′ | 10′ | AJ360-F-1000-12-10 | 1,635 lbs | 150″ | 164-1/2″ | 141-1/2″ | 1-11/16″ | 48″ | 4-15/16″ | 48″ | 60″ | 14″ | 11″ | 22″ |
| 12′ | 12′ | AJ360-F-1000-12-12 | 1,995 lbs | 150″ | 164-1/2″ | 141-1/2″ | 1-11/16″ | 60″ | 4-15/16″ | 48″ | 60″ | 16″ | 13″ | 26″ |
| 12′ | 14′ | AJ360-F-1000-12-14 | 2,620 lbs | 150″ | 164-1/2″ | 141-1/2″ | 1-11/16″ | 72″ | 4-15/16″ | 48″ | 60″ | 20″ | 17″ | 34″ |
| 12′ | 16′ | AJ360-F-1000-12-16 | 2,985 lbs | 151″ | 167-3/8″ | 141-1/2″ | 1-5/8″ | 84″ | 5-7/16″ | 48″ | 72″ | 20″ | 17″ | 34″ |
