MechRail Rail Systems
The Mechrail is a specialized rail system that encompasses a variety of propulsion options, including manual and motorized units, to accommodate different industrial needs. Designed for versatility, the Mechrail system features a large selection of trolleys, which allows for the seamless creation of custom systems, complete with extensions and a wide range of accessories. The system’s high-performance trolleys ensure that even the most sensitive loads can be transported quickly and smoothly, with repeated precision. For facilities lacking roof support, the Mechrail can be integrated into existing ceiling frameworks or paired with custom-designed floor-mounted structures, ensuring adaptability across any working environment.
Mechrail

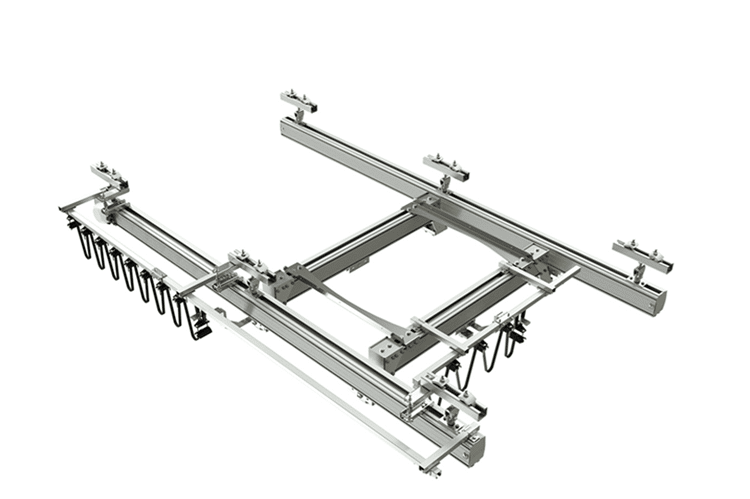

Mechrail is ceiling mounted overhead crane / rail system that is makes lifting smart, versatile and innovative. The Mechrail is composed of light-weight aluminum and is designed to be used indoors. Mechrail is easy to use and install, and features seamless integration into your facilities needs.
- Easy to assemble
- Range of end effectors / accessories
- Low rolling resistance creating ergonomic handling
- Highly customizable
Electric Power Drive
The electric Power Drive is an electric drive unit that integrates in the rail system trolleys of the Mechrail. It features an adjustable driving speed and is controlled by a joystick.
Pneumatic Power Drive
The pneumatic Power Drive is the air-driven version of the electric Power Drive.
MechRail Rail System Specifications
Mechrail
| Specifications | Details |
|---|---|
| Material | Extruded Aluminum Profiles |
| Design Features | T-Channels, Flanges, and Smooth Sides for Easy Cleaning |
| Strength | Maximum Strength for Heavy Load Capacity (Up to 1000 kg) |
| Advantages of Aluminum |
|
| Load Capacity | Up to 1000 kg |
| Suspension Solutions | Various Suspension Alternatives Depending on Building Construction |
| Trolley Features |
|
| Drive Units | Optional Drive Units Can Be Connected to Trolleys |
| Expansion Capability | Easy-to-Fit Joint Sets for System Widening or Lengthening |
| T-Formed Grooves | Enables Attachment of Various Accessories |
| Applications |
|
Powerdrive - Electric
| Specifications | Details |
|---|---|
| Type | Electric Drive Unit for Mechrail |
| Control | Stepless Speed Adjustment with Frequency Converter, Controlled by Joystick |
| Direction | Can be Used in X and Y Directions |
| Brake System | Additional Control Units for Brake System on the Manoeuvre Handle |
| Load Capacity | 250 / 500 kg |
| Motor Output | 0.18 kW |
| Voltage Options |
|
| Fusing | 10 AT |
| Enclosure Class | IP 54 |
| Noise Level | < 70 dB (A) |
Powerdrive - Pneumatic
| Specifications | Details |
|---|---|
| Type | Pneumatic Drive Unit for Mechrail |
| Control | Controlled by Lever Valve |
| Load Capacity | 250 / 500 kg |
| Dead Weight | 15 kg |
| Motor Output | 0.16 kW |
| Medium | Compressed Air, Filtered, Unlubricated |
| Working Pressure | 6 bar |
| Noise Level | 77 dB (A) |
Regulations
All of our Material Handling solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20.
