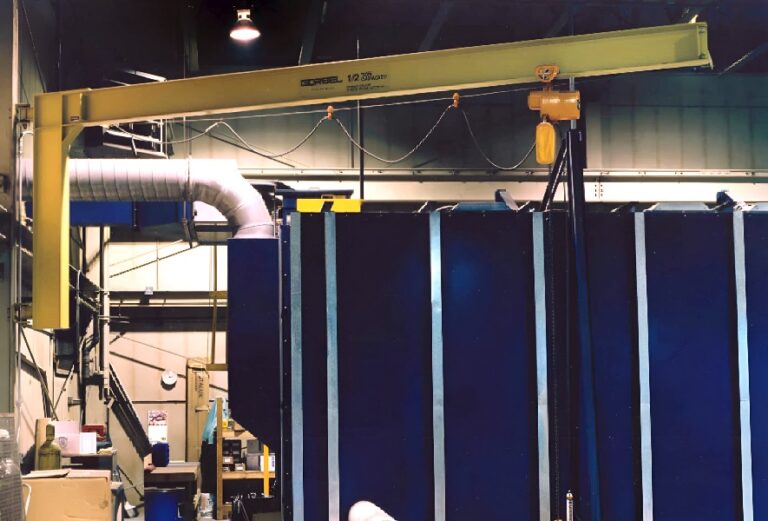

Mast Type Jib Crane, 1 Ton Capacity
A space-saving lifting solution with a vertical mast for enhanced stability. Ideal for confined areas, it offers efficient load handling and precise maneuverability.
These 1-ton capacity mast type jib crane is floor supported, top stabilized and is capable of 360-degree rotation through a top and bottom bearing assembly. These jib cranes are simple and efficient in design and usually require no special foundation making them one of the most cost-effective 360-degree rotation system jib cane on the market.
Manual Lifting Attachment
One of our customers needed a solution to lift 11 camshafts. R&D Ergo Ltd.
Pneumatic Device for Transfer Cases
This pneumatic lifting device has a power clamp and power lift, in addition to having the ability to manually rotate 180 degrees.
Vacuum Tube Lifter for Lifting Wood and MDF Sheets
This carpentry company needed a way to quickly, effectively and safely move sheets of wood throughout their workshop, without causing any damage to the wood itself.
- These jib cranes use a self-aligning radial brushing at the top which cannot be displaced, and an identical self-aligning radial brushing at the bottom which, when used with an oil-impregnated bronze thrust washer, provides ease of movement.
Jib Crane Models
| Capacity | OAH (C) | 8′ Span | 10′ Span | 12′ Span | 14′ Span | 16′ Span | 18′ Span | 20′ Span |
| 1 Ton | 10′ | MT400-10-8-15 | MT400-14-10-20 | MT400-14-10-15 | MT400-14-10-15 | MT400-14-12-15 | MT400-16-12-20 | MT400-16-16-20 |
| 1 Ton | 12′ | MT400-10-8-15 | MT400-14-8-15 | MT400-14-10-15 | MT400-14-10-15 | MT400-14-12-15 | MT400-16-12-15 | MT400-16-16-20 |
| 1 Ton | 14′ | MT400-10-8-15 | MT400-14-8-15 | MT400-14-10-15 | MT400-14-10-15 | MT400-14-12-15 | MT400-16-12-15 | MT400-16-16-15 |
| 1 Ton | 16′ | MT400-10-8-15 | MT400-14-8-15 | MT400-14-10-15 | MT400-14-10-15 | MT400-16-12-15 | MT400-16-12-15 | MT400-18-16-15 |
| 1 Ton | 18′ | MT400-14-8-15 | MT400-14-8-15 | MT400-14-10-15 | MT400-16-10-15 | MT400-16-12-15 | MT400-16-12-15 | MT400-18-16-15 |
| 1 Ton | 20′ | MT400-14-8-15 | MT400-14-8-15 | MT400-14-10-15 | MT400-16-10-15 | MT400-16-12-15 | MT400-16-12-15 | MT400-18-16-15 |
