Pneumatic Device for Transfer Cases

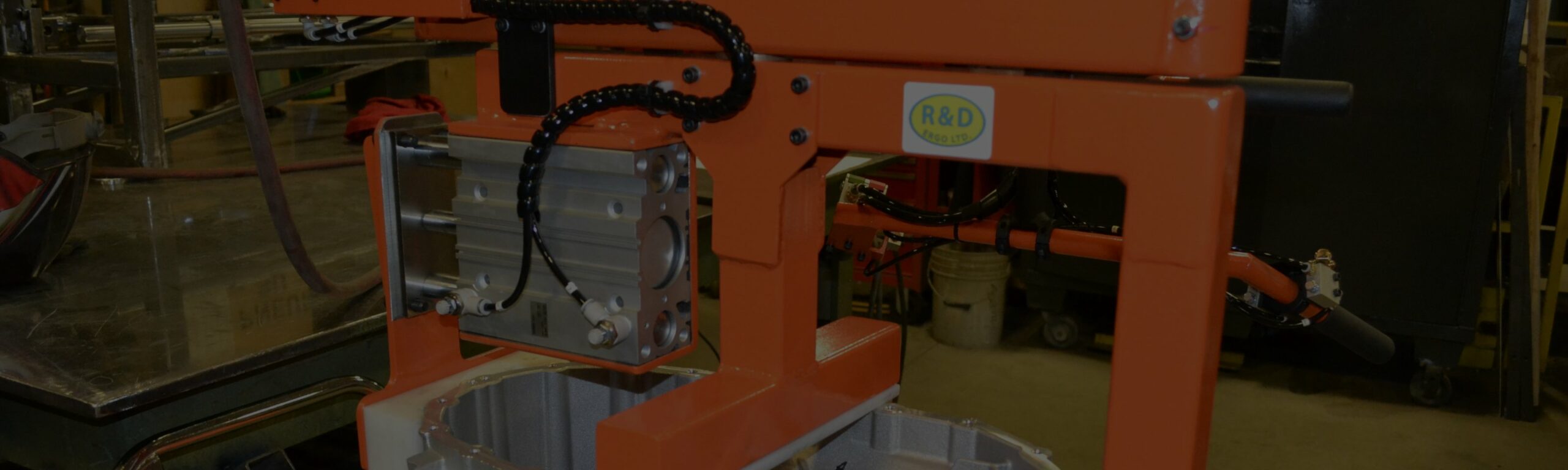

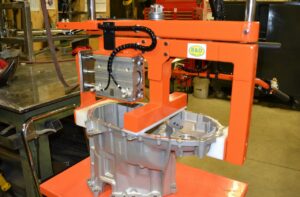

This pneumatic lifting device has a power clamp and power lift, in addition to having the ability to manually rotate 180 degrees. It is designed to pick up a transfer case for a 1/2 ton truck and move it from one station to another on an assembly line.
The pictured system includes:
- A guided compressed air cylinder that provides the lift stroke needed.
- Two hand control no drop safety interlock.
- Two hand anti-tie down for custom pneumatic grip tooling fitting over a dozen different transfer cases.

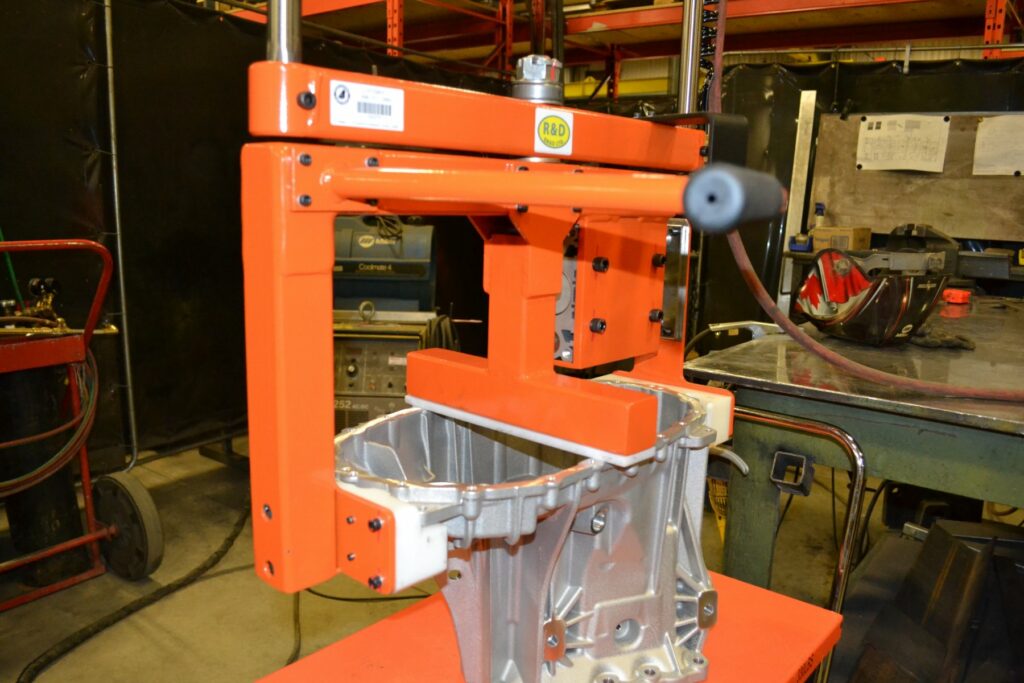

- Delrin gripper pads used to prevent transfer case part damage.

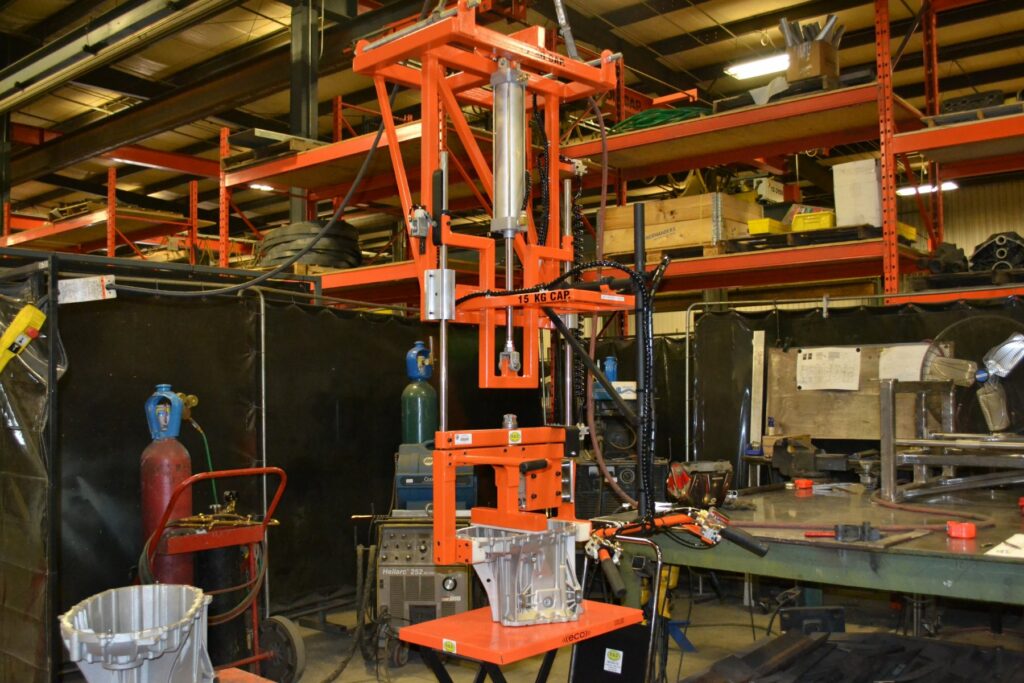

This system is suspended from 4 trolleys and hangs from a dual monorail overhead system.
