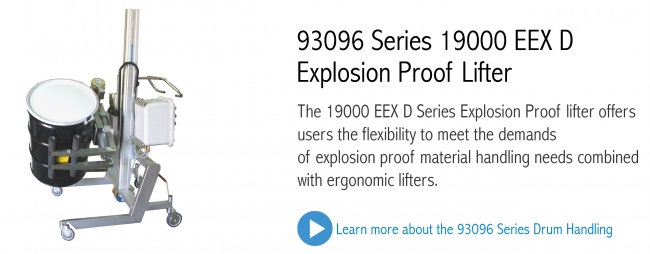

19000 EEX D Explosion Proof Barrel Lifter

The 93096 Series, 19000 EEX D Explosion Proof Barrel Lifter gives users the confidence to meet the demands of a job which require the use and movement of explosion-prone materials. Not only will this barrel lifter allow for you to ergonomically move a product from one location to the next, but it will also give you the ability to lift, tilt and pour drums safely.

The 93096 Series, 19000 EEX D Explosion Proof Barrel Lifter gives users the confidence to meet the demand of a job which requires the use and movement of explosion-prone materials. Not only will this barrel lifter allow for you to ergonomically move a product from one location to the next, but it will also give you the ability to lift, tilt and pour drums safely.

The lifter is self-contained and has explosion-proof enclosures for the control panel and power pack (batteries) which, are also spark resistant. The battery compartment is able to be mounted permanently to the lifter for charging outside the EX-room or it can be mounted with a "quick disconnect" feature for charging in a neutral zone. This series of drum lifter is comprised of modules, which allows for the interchangeability of components, to meet your ergonomic requirements.

Additionally, the intermediate section is provided with a lift motor for powering the mast slide for easy and safe movement up and down of the end effector. The mast is completely enclosed and is provided with a ball screw for smooth up and down DC powered movement. A slip clutch on the down movement provides added security for safe load handling.

Technical Specifications:

Dimensions Designed to Access Movement Attachment
Dimensions.
38.75" L x 35.5" W x 118.2" H
Drum Handling.
Outside Diameter Clamp
Movement
A foot-operated rear central braking system is used on the lifter, along with front mounted casters and swivel casters at the rear.
Options & Accessories.
An optional scale can also be provided to weigh loads during processing operations.
Controls Fall Safety User
Design For
Lifting and moving drums weighing up to 700 lbs.
Controls.
Push Buttons
Safety Features
Built-in safety feature controls prevent accidental release of the drum
Number of Users.
1 User
