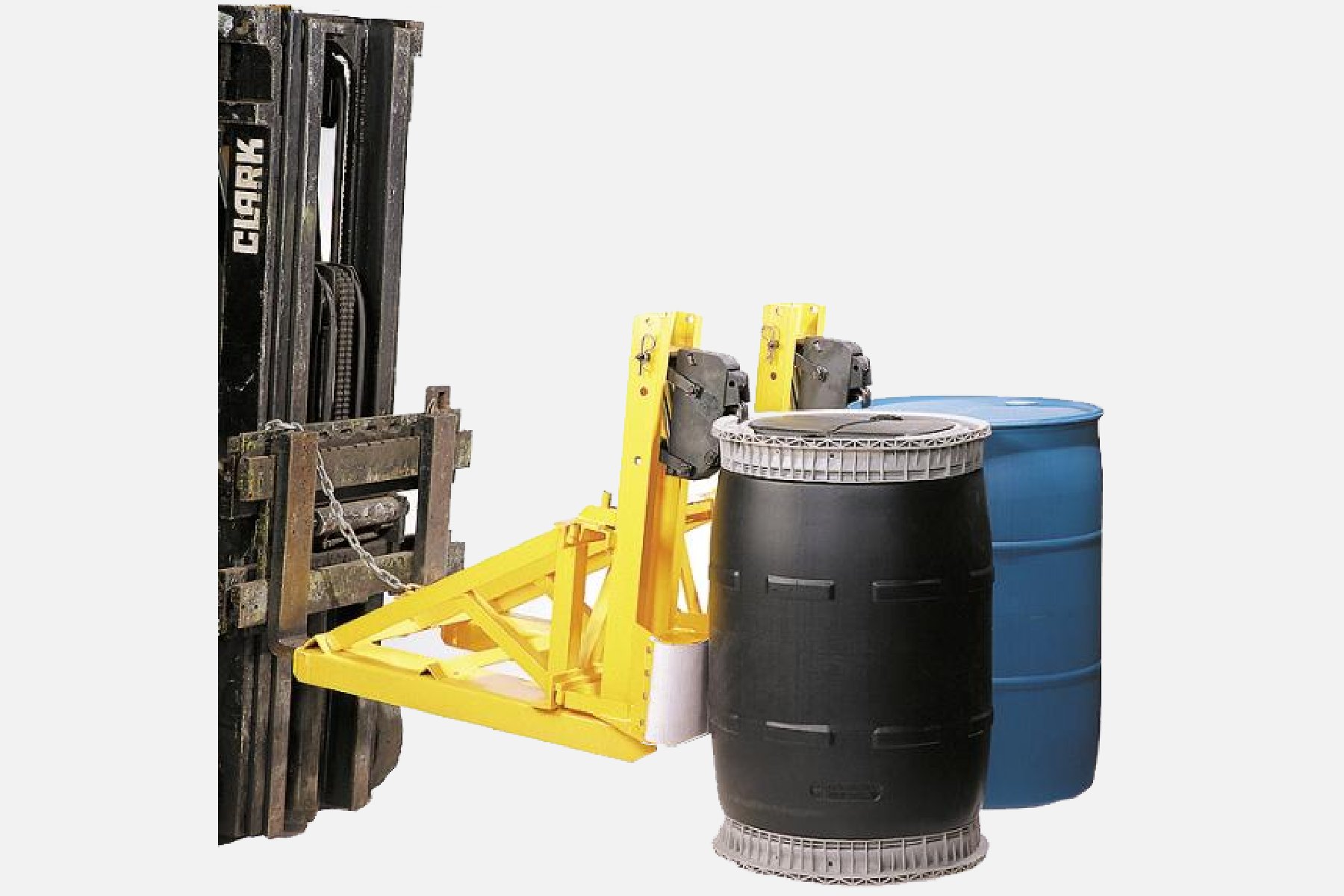

Eagle Grip 3 Drum Handling Unit
The Eagle Grip 3 Drum Handling Unit is designed to utilize a heavy-duty grip and use single automatic calming mechanisms, which make it perfect for handling steel and plastic drums in high volume applications.
With a completely mechanical clamping mechanism, this piece of drum handling equipment requires no hydraulic or electrical connections. With the addition of positive action jaws on this drum handling unit, drums are transported safely without any damage occurring to the drum chimes.
kEY FEATURES
Versatility: The attachment is designed to fit on the forks of any lift truck, making it a versatile addition to your warehouse equipment.
Fully Automatic: The mechanical design of the attachment is fully automatic, meaning that it does not require any hydraulic or electrical connections to the lift truck, making it incredibly easy to use.
Safety: The attachment comes with a safety chain and cam-lock, which secures the attachment to the lift truck in seconds, ensuring that it is safely and securely attached at all times, giving you peace of mind while handling heavy drums.
Clamping Arms: The attachment’s clamping arms wrap around the tapered sides of the drum, allowing it to handle 1 or 2 drums at a time, and making it an ideal solution for handling drums of various sizes.
Pit Mounted Drive on Lift Table with Safety Skirt
Opening in wire mesh dunnage allows the operator to safely and ergonomically load or unload parts in and out of the dunnage.
Vacuum End Effector for Warehouse
This warehouse needed a way to lift a variety of different items up, without damaging them.
Roll Handling System
R&D Ergo successfully supplied and installed this roll-lifting solution to one of our amazing customers in the food manufacturing industry located in southern Ontario.
| Model | Capacity | Weight | Dimensions H x L x W | Drums | Attachment Mounting | |
|---|---|---|---|---|---|---|
| (lbs/kg) | (lbs/kg) | (inches) | (mm) | Handled | ||
| EG3SCM-CM | 1500/680 | 85/39 | 33x15x18 | 838x381x457 | 1 | Carriage Mount |
| EG3SCM-NF | 1500/680 | 228/104 | 37x47x24 | 940x1194x610 | 1 | Narrow Fork Mount |
| EG3SCM-NFQC | 1500/680 | 316/144 | 42x47x24 | 1067x1194x610 | 1 | Narrow Fork Mount |
| EG3SCM-F | 1500/680 | 306/139 | 37x47x33 | 940x1194x838 | 1 | Adjustable Fork Mount |
| EG3SCM-FQC | 1500/680 | 394/179 | 42x47x33 | 1067x1194x838 | 1 | Adjustable Fork Mount |
| EG3SCM2-F | 3000/1361 | 382/173 | 37x47x33 | 940x1194x838 | 1 or 2 | Adjustable Fork Mount |
| EG3SCM2-FQC | 3000/1361 | 470/213 | 42x47x41 | 1067x1194x1042 | 1 or 2 | Adjustable Fork Mount |
Contact us today in order to start reducing the danger that may be occurring in your workplace!
