Movomech Electric Cranes & Manipulators
Our Movomech Electric Cranes and Manipulators line of products includes our line of Rail Systems including the electric MechChain Pro and MechLift E. Through a series of suspensions and trolleys, we can easily build complete systems, with extensions and accessories as needed. Our smooth-running trolleys make sure that PHB cranes can be moved rapidly and repeatedly without harming the loads. If roof mounting is unavailable, the Movomech line can be mounted into the ceiling or floor-mounted steel structures.

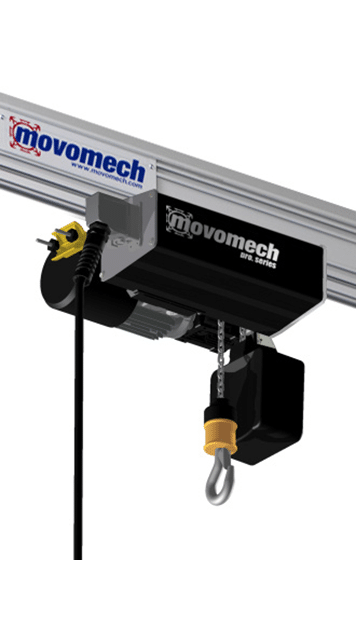

Mechchain Pro
- General lifting with slings or hooks
- High-precision assembly work
- Material handling using custom grippers
- Efficient packing onto pallets and roller conveyors
Mechlift E
The Electric Mechlift Pro, known as Mechlift E, is expertly crafted with anodized telescoping aluminum profiles, ensuring minimal maintenance and durability. Its ergonomic design, coupled with momentum-absorbing technology, provides a lightweight lifting solution. You can precisely control the lifting speed with stepless frequency adjustment via a joystick.
- Handles loads ranging from 165 to 1,430 pounds
- Offers a maximum stroke of 78 inches
- Adaptable with standard or customized tools and accessories, including rotation units, tool fittings, and brake units
- Versatile across a wide range of industry sectors, catering to diverse lifting and handling needs.
Movomech Electric Crane Specifications
mechchain Pro
Mechlift E
| Specifications | Details |
|---|---|
| Type | Lifting Unit with Frequency Control |
| Lifting Capacity | 63 kg, 80 kg, 125 kg |
| Lifting Speed | 0-16 m/min (63 kg, 80 kg), 0-12 m/min (125 kg) |
| Rail System Compatibility | LHB/PHB1/AHB1-2 (63 kg, 80 kg), PHB1/AHB1-2 (125 kg), AHB1-2 (125 kg) |
| Stroke | 5 m (option for 7 m) |
| Noise Level | < 70 dB (A) |
| Max Dead Weight | 17 kg |
| Chain | 4x9 mm |
| Motor Effect | 0.22 kW |
| Voltage | 1x230V, N, PE (±15%), 50/60Hz |
| Fusing | 10 AT |
| Enclosure Class | IP 54 |
| Specifications | Details |
|---|---|
| Type | Ergonomically Designed Momentum Absorbing Lifter |
| Lifting Capacity | 165-1,430 pounds |
| Maximum Stroke | 78 inches |
| Tools and Accessories | Standard or Customized Tools and Accessories (Rotation Units, Tool Fittings, Brake Units, etc.) |
| Common Applications |
|
Regulations
All of our Material Handling solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20.
