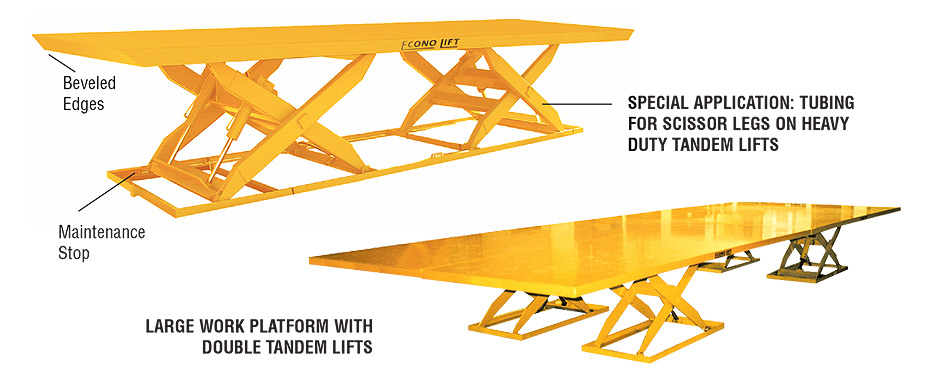

Tandem Scissor Lift Tables
Maximize lifting capacity and stability with Tandem Scissor Lift Tables. These innovative tables feature two sets of scissor arms working in sync, offering increased load capacity and a smooth lifting motion. Ideal for handling heavy or oversized loads, these tables ensure efficient and safe lifting operations in various industrial applications. Choose from a range of models to find the perfect solution for your specific lifting requirements.
These tandem scissor lift tables optimize the usage of your lift table by providing you with a much larger work area than traditional lift tables. Not only are these easy to use, but they come in a variety of different models with several power supply options including A/C 110/1/60 volt, A/C 460/575/3/60 volt and air/hydraulic.
Models Available: With 34″ Travel – 36″ Wide x 96″ Long Platform/Base
| Model No. | Capacity (lbs.) | Std. Plat. Base | Low HT (In.) | Raised HT (In.) | Up Spead | Volt/HP/HZ |
|---|---|---|---|---|---|---|
| TSL36-10 | 1,000 | 24 x 96 | 9 | 45 | 20 Sec | 110/1/60 |
| TSL36-20 | 2,000 | 24 x 96 | 9 | 45 | 30 Sec | 110/1/60 |
| TSL36-40 | 4,000 | 24 x 96 | 9 | 45 | 40 Sec | 110/1/60 |
| TSL36-60 | 6,000 | 24 x 96 | 9 | 45 | 35 Sec | 575/3/60 |
| TSL36-80 | 8,000 | 24 x 96 | 9 | 45 | 45 Sec | 575/3/60 |
| TSL36-100 | 10,000 | 24 x 96 | 9 | 45 | 55 Sec | 575/3/60 |
| TSL36-120 | 12,000 | 24 x 96 | 9 | 45 | 57 Sec | 575/3/60 |
Models Available: With 48″ Travel – 24″ Wide x 144″ Long Platform/Base
| Model No. | Capacity (lbs.) | Std. Plat. Base | Low HT (In.) | Raised HT (In.) | Up Spead | Volt/HP/HZ |
|---|---|---|---|---|---|---|
| TSL48-10 | 1,000 | 24 x 144 | 9 | 57 | 32 Sec | 110/1/60 |
| TSL48-20 | 2,000 | 24 x 144 | 9 | 57 | 43 Sec | 110/1/60 |
| TSL48-40 | 4,000 | 24 x 144 | 9 | 57 | 55 Sec | 110/1/60 |
| TSL48-60 | 6,000 | 24 x 144 | 9 | 57 | 45 Sec | 575/3/60 |
| TSL48-80 | 8,000 | 24 x 144 | 9 | 57 | 55 Sec | 575/3/60 |
| TSL48-100 | 10,000 | 24 x 144 | 9 | 57 | 60 Sec | 575/3/60 |
| TSL48-120 | 12,000 | 24 x 144 | 9 | 57 | 62 Sec | 575/3/60 |
Models Available: With 60″ Travel – 24″ Wide x 176″ Long Platform/Base
| Model No. | Capacity (lbs.) | Std. Plat. Base | Low HT (In.) | Raised HT (In.) | Up Spead | Volt/HP/HZ |
|---|---|---|---|---|---|---|
| TSL60-10 | 1,000 | 24 x 176 | 9 | 69 | 38 Sec | 110/1/60 |
| TSL60-20 | 2,000 | 24 x 176 | 9 | 69 | 50 Sec | 110/1/60 |
| TSL60-40 | 4,000 | 24 x 176 | 9 | 69 | 60 Sec | 110/1/60 |
| TSL60-60 | 6,000 | 24 x 176 | 9 | 69 | 50 Sec | 575/3/60 |
| TSL60-80 | 8,000 | 24 x 176 | 9 | 69 | 65 Sec | 575/3/60 |
| TSL60-100 | 10,000 | 24 x 176 | 9 | 69 | 78 Sec | 575/3/60 |
| TSL60-120 | 12,000 | 24 x 176 | 9 | 69 | 80 Sec | 575/3/60 |
All of our Material Handling  solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20.
KEY FEATURES
Cost-effective solutions
Engineered for performance without compromising your budget.
Safety First
Reduces risk of injuries and Musculoskeletal Disorders (MSDs).
Customized Systems
Tailored solutions designed to fit the unique needs of your workspace.
Workforce productivity
Improves efficiency and output across all workplace operations.
Employee engagement
Boosts satisfaction and involvement by providing safer & convenient equipment.
Compliance
Meets and exceeds all OSHA and ANSI standards for workplace safety.
Cost savings
Minimizes potential fines and lowers insurance premiums through safer practices.
Quality assurance
Enhances the overall quality and consistency of work performed.
