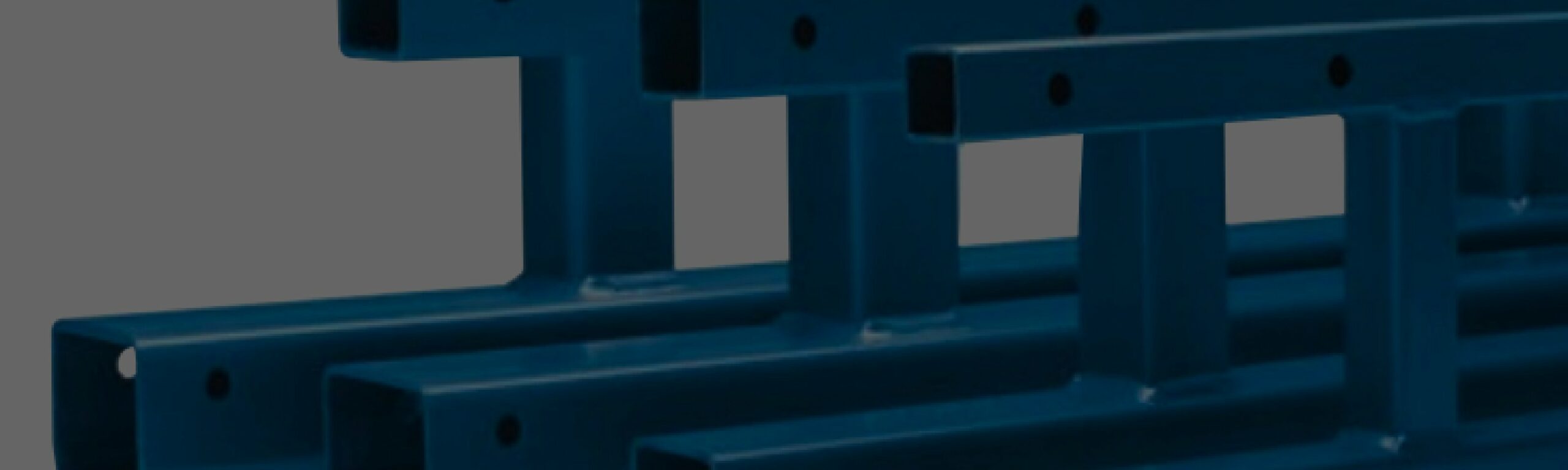

Trussed Steel Track Monorail
These enclosed tracks give you easy movement and a long life-span on your lifting device. These monorail systems are both strong and lightweight, and the 2-degree taper on the running flange helps to centre the wheels on the track and prevent debris from settling on the rolling surface. This allows for a smooth, effortless movement of the trolleys and end trucks on your monorail system.
This steel track monorail permits longer spans when frequent support points are not available, giving you more flexibility in the crane layout. The trussed series uses the plan steel track profile, but is enhanced for longer spans via a built-up truss design. This design increase the span, which decreases the need for frequent hangers.
Features and Benefits
- The enclosed tracks used on this monorail system are up to three times easier to move than traditional bridge cranes.
- The design of this monorail system protects the rolling surface form the build-up of dirt and dust.
- The smooth running surface of the enclosed track means lower rolling resistance.
- The low track weight reduces operator push-pull forces.
- Max Support Distance: 20′, 25′ or 30′
- Weight Capacity: 250 – 4,000 lbs
- Std. Bridge Lengths: Up to 34′
- Std. Runway Lengths: Up to 124′
- Std. Support Distances: 20′, 25′, 30′
- Material: Trussed Steel
