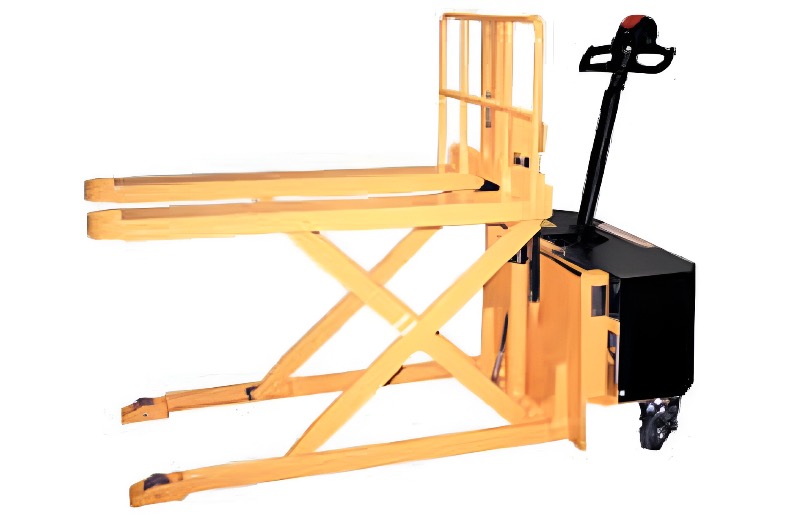

Self Propelled Portable Skid Lifts
These self-propelled lift tables are perfect for moving and lifting heavy items throughout your facility; making them ideal for a wide variety of applications such as die changing. In addition, these lift tables have a wide variety of different customizations available including longer forks, industrial battery, industrial charger, battery discharge indicator and an hour meter.
Models Available for 24" Wide Base Lift Tables.
Model No. | Capacity (lbs.) | Std. Plat. Base (In.) | Oversized Platforms (In.) | Low HT (In.) | Raised HT (In.) | Up Speed | Ship Weight (Lbs.) |
PLT24-20 | 2,000 | 24 x 36 | 40 x 60 | 12 | 36 | 15 sec | 600 |
PLT24-40 | 4,000 | 24 x 36 | 40 x 60 | 12 | 36 | 21 sec | 620 |
PLT24-60 | 6,000 | 24 x 36 | 40 x 60 | 12 | 36 | 32 sec | 670 |
PLT36-20 | 2,000 | 24 x 48 | 48 x 72 | 12 | 48 | 17 sec | 750 |
PLT36-30 | 3,000 | 24 x 48 | 48 x 72 | 12 | 48 | 30 sec | 770 |
PLT36-40 | 4,000 | 24 x 48 | 48 x 72 | 12 | 48 | 47 sec | 800 |
PLT36-50 | 5,000 | 24 x 48 | 48 x 72 | 12 | 48 | 42 sec | 830 |
PLT36-60 | 6,000 | 24 x 48 | 48 x 72 | 12 | 48 | 45 sec | 850 |
PLT48-20 | 2,000 | 24 x 72 | 48 x 96 | 12 | 60 | 32 sec | 1,000 |
PLT48-40 | 5,000 | 24 x 72 | 48 x 96 | 12 | 60 | 48 sec | 1,150 |
PLT48-60 | 6,000 | 24 x 72 | 48 x 96 | 12 | 60 | 54 sec | 1,200 |
Models Available for 26" Wide Base Lift Tables.
Model No. | Capacity (lbs.) | Std. Plat. Base (In.) | Oversized Platforms (In.) | Low HT (In.) | Raised HT (In.) | Up Speed | Ship Weight (Lbs.) |
3PLT24-20 | 2,000 | 36 x 36 | 60 x 60 | 12 | 36 | 15 sec | 680 |
3PLT24-40 | 4,000 | 36 x 36 | 60 x 60 | 12 | 36 | 21 sec | 720 |
3PLT24-60 | 6,000 | 36 x 36 | 60 x 60 | 12 | 36 | 32 sec | 750 |
3PLT36-20 | 2,000 | 36 x 48 | 60 x 72 | 12 | 48 | 17 sec | 950 |
3PLT36-40 | 4,000 | 36 x 48 | 60 x 72 | 12 | 48 | 30 sec | 990 |
3PLT36-60 | 6,000 | 36 x 48 | 60 x 72 | 12 | 48 | 37 sec | 1,050 |
3PLT48-20 | 2,000 | 36 x 72 | 60 x 96 | 12 | 60 | 32 sec | 1,300 |
3PLT48-40 | 4,000 | 36 x 72 | 60 x 96 | 12 | 60 | 48 sec | 1,400 |
3PLT48-60 | 6,000 | 36 x 72 | 60 x 96 | 12 | 60 | 54 sec | 1,480 |
Contact us today in order to start reducing the danger that may be occurring in your workplace!
