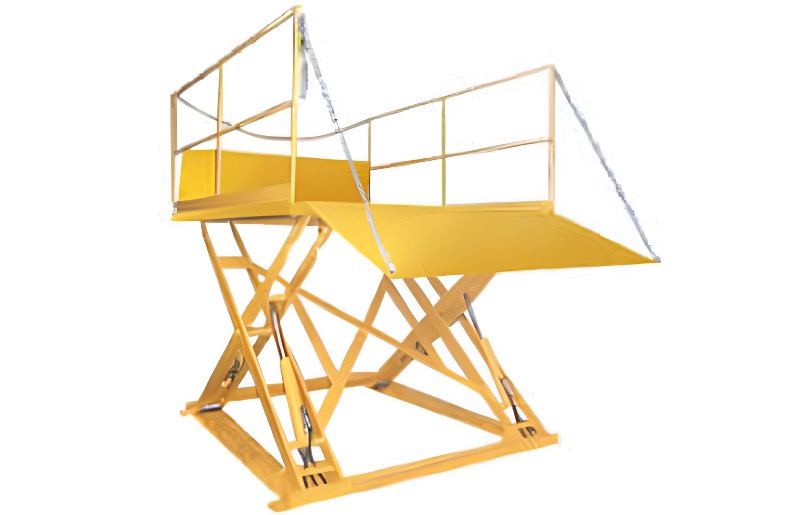

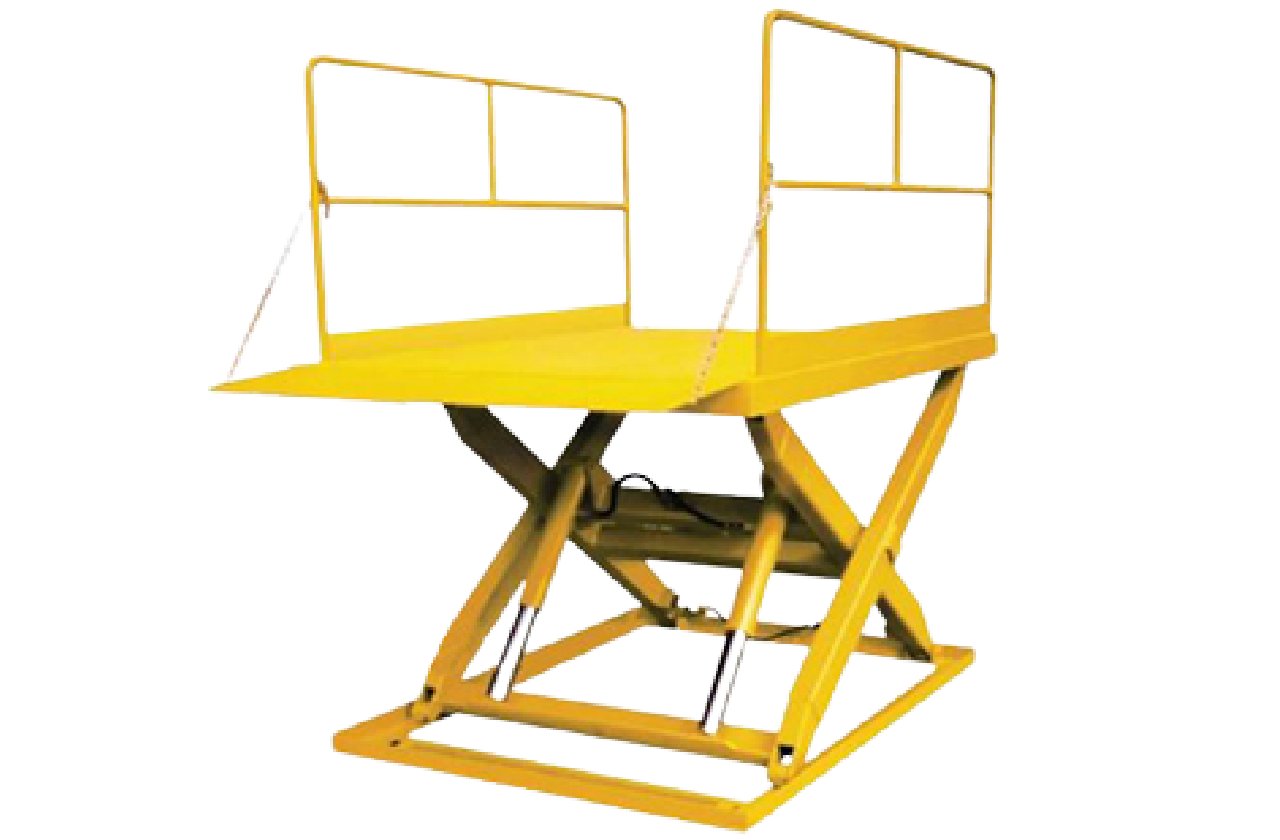

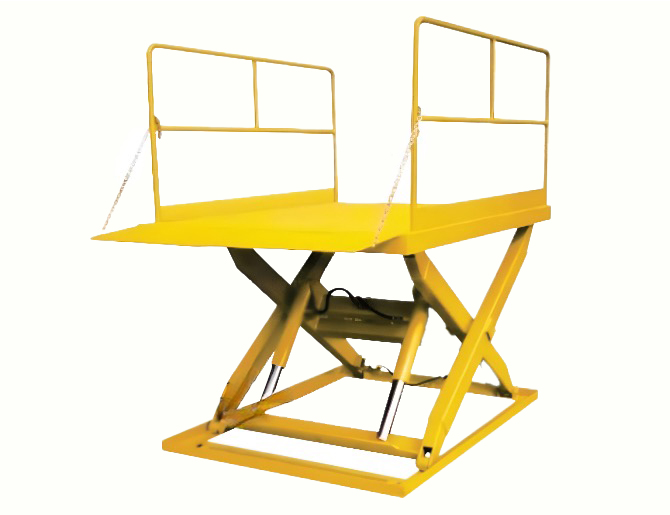

Loading Docks
We offer a wide variety of loading docks to ensure that you will be able to find the perfect loading dock for your application. These loading docks are designed in order to help you to safely and easily lift up pieces of equipment.
Models Available for 72" Wide Platform Widths.
Model No. | Capacity (lbs.) | Lowered Height (In.) | Vertical Travel (In.) | Base Frame (In.) | Motor (H.P.) | Approx. Lift Time | Approx. Weight (Lbs.) |
LD-5-7296 | 5,000 | 9 | 59 | 66 x 92 | 36 | 100 sec | 600 |
LD-6-7296 | 6,000 | 12 | 59 | 66 x 92 | 36 | 120 sec | 620 |
LD-8-7296 | 8,000 | 12 | 59 | 66 x 92 | 36 | 55 sec | 670 |
LD-10-7296 | 10,000 | 12 | 59 | 66 x 92 | 36 | 70 sec | 670 |
LD-12-7296 | 12,000 | 14 | 59 | 66 x 92 | 36 | 54 sec | 670 |
LD-5-72120 | 5,000 | 9 | 59 | 66 x 92 | 48 | 100 sec | 750 |
LD-6-72120 | 6,000 | 12 | 59 | 66 x 92 | 48 | 120 sec | 770 |
LD-8-72120 | 8,000 | 12 | 59 | 66 x 92 | 48 | 55 sec | 800 |
LD-10-72120 | 10,000 | 12 | 59 | 66 x 92 | 48 | 70 sec | 830 |
LD-12-72120 | 12,000 | 12 | 59 | 68 x 138 | 48 | 54 sec | 850 |
LD-12-72144 | 12,000 | 14 | 59 | 68 x 138 | 60 | 54 sec | 1,000 |
Models Available for 96" Wide Platform Widths.
Model No. | Capacity (lbs.) | Lowered Height (In.) | Vertical Travel (In.) | Base Frame (In.) | Motor (H.P.) | Approx. Lift Time | Approx. Weight (Lbs.) |
LD-5-9696 | 5,000 | 9 | 59 | 66 x 92 | 1 | 100 sec | 680 |
LD-6-9696 | 6,000 | 10 | 59 | 66 x 92 | 1 | 120 sec | 720 |
LD-8-9696 | 8,000 | 14 | 59 | 66 x 92 | 3 | 55 sec | 750 |
LD-10-9696 | 10,000 | 14 | 59 | 66 x 92 | 3 | 70 sec | 670 |
LD-12-9696 | 12,000 | 14 | 59 | 66 x 93 | 5 | 54 sec | 670 |
LD-5-96120 | 5,000 | 9 | 59 | 66 x 92 | 1 | 100 sec | 950 |
LD-6-96120 | 6,000 | 10 | 59 | 66 x 92 | 1 | 120 sec | 990 |
LD-8-96120 | 8,000 | 14 | 59 | 66 x 92 | 3 | 55 sec | 1,050 |
LD-10-96120 | 10,000 | 14 | 59 | 66 x 92 | 3 | 70 sec | 670 |
LD-12-96120 | 12,000 | 14 | 59 | 89 x 114 | 5 | 54 sec | 670 |
LD-12-96144 | 12,000 | 14 | 59 | 89 x 138 | 5 | 54 sec | 1,300 |
Contact us today in order to start reducing the danger that may be occurring in your workplace!
