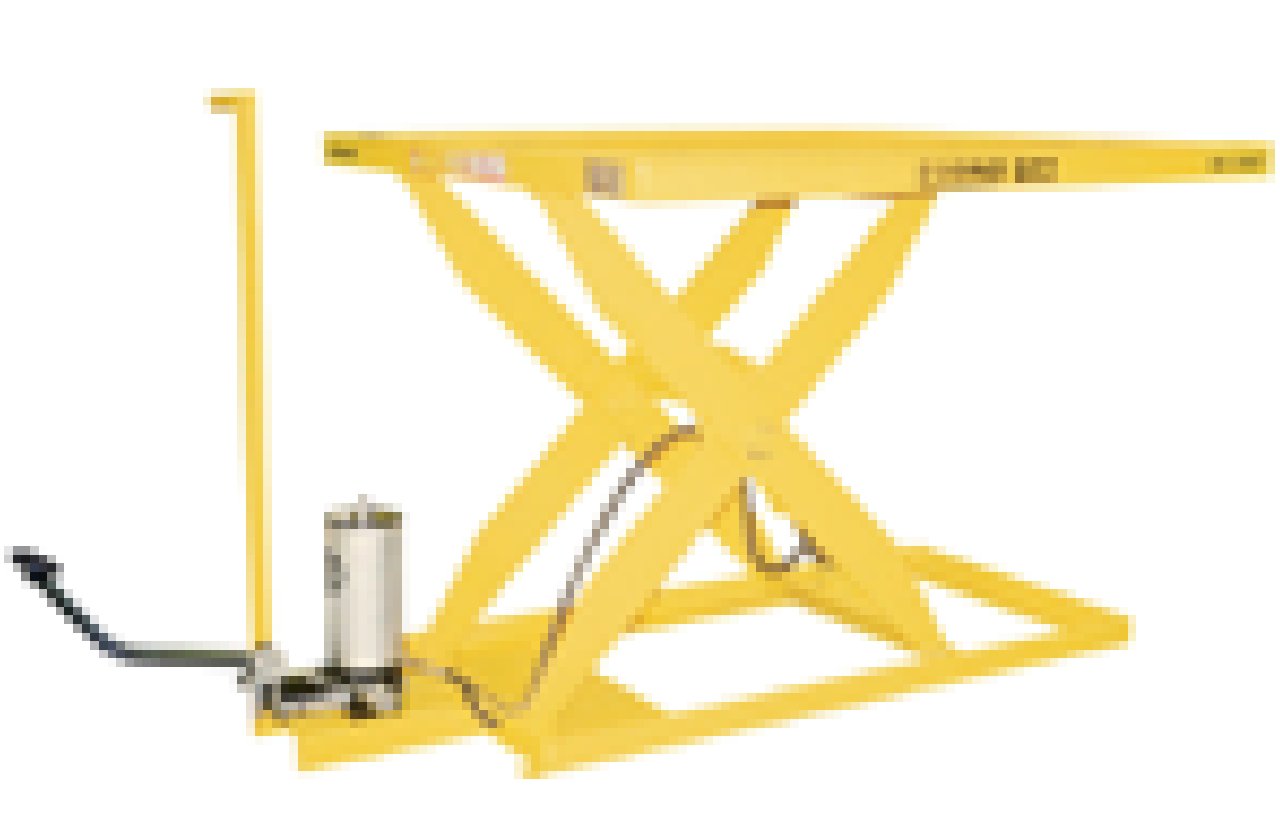

Light Duty Stationary Lift Tables
Light Duty Stationary Lift Tables are reliable and sturdy platforms for lifting and positioning tasks. With their compact design and robust construction, they provide stability and durability. These lift tables are ideal for light-duty applications, offering a safe and efficient solution for material handling in warehouses, workshops, and other industrial settings.
This light duty lift table is designed to safely lift products up allowing for easy product access. These lift tables can lift up to 1,500 lbs and have several power potions: foot pump, A/C 110 volt, A/C 460/575/3/60 volt and Air/Hydraulic.
What are the Benefits of a Lift Table?
These ergonomic systems are designed to help you optimize your workforce and in time can help you to lower costs through preventing injuries and increasing worker efficiency.
Custom Ergonomic Lift Assist Devices
We designed custom ergonomic lift assist devices for a major international automotive manufacturer.
Side Mount Drive on Scissor Lift Table
Ergonomic custom design and build of a side mount drive on scissor lift table.
Portable Roll Lifter
Ergonomic custom design and build of a side mount drive on scissor lift table.
Model No. | Capacity (lbs.) | Std. Plat. Base | Low HT (In.) | Travel (In.) | Total HT (In.) | Strokes to Max HT |
---|---|---|---|---|---|---|
LDF24-10 | 1,000 | 24 x 36 | 5 1/2 | 24 | 29 1/2 | 31 |
LDF24-15 | 1,500 | 24 x 36 | 5 1/2 | 24 | 29 1/2 | 49 |
LDF36-10 | 1,000 | 24 x 48 | 5 1/2 | 36 | 41 1/2 | 40 |
LDF36-15 | 1,500 | 24 x 48 | 5 1/2 | 36 | 41 1/2 | 62 |
Model No. | Capacity (lbs.) | Std. Plat. Base | Low HT (In.) | Travel (In.) | Total HT (In.) | Strokes to Max HT |
---|---|---|---|---|---|---|
LDF24-10 | 1,000 | 24 x 36 | 5 1/2 | 24 | 29 1/2 | 12 sec |
LDF24-15 | 1,500 | 24 x 36 | 5 1/2 | 24 | 29 1/2 | 20 sec |
LDF36-10 | 1,000 | 24 x 48 | 5 1/2 | 36 | 41 1/2 | 20 sec |
LDF36-15 | 1,500 | 24 x 48 | 5 1/2 | 36 | 41 1/2 | 28 sec |
A Guide to Workplace Musculoskeletal Disorders
Your Perfect Solution Awaits!
Request a Quote
Related Products
Lift Tables
These lift tables come in a variety of different sizes, each of which are designed in order to lift a different quantity of weight.
Lift Tilt Tables
These lift and tilt tables are designed to be able to lift products weighing up to 4,000lbs and can also tilt them up to 45 degrees. They are the obvious product of choice if you are looking for a two in one system. These products can also be customized in order to have a wider or deeper platform, bellow safety skirting can also be added and the lift/tilt can be reduced or increased.
Light Duty Portable Lift Tables
These light duty and portable will enable you to lift a variety of products, with a 1000 pound capacity!
