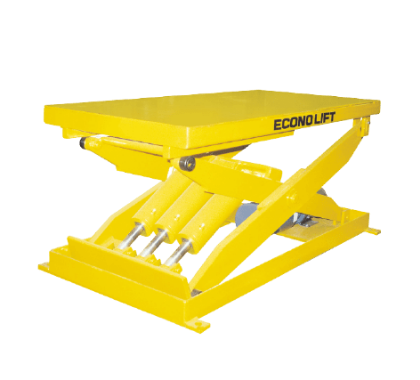

Heavy Duty Lift Tables

These lift tables are designed in order to be able to lift up to 12,000 lbs and have a wide base unit not only for wider platform applications but also to ensure greater stability when lifting items up. In addition, these lift tables can be customized in a variety of different ways such as bevelled edges for pit mounting, eye-bolts for pit mounting, rotating tops, conveyor tops, ball transfer tops, bellow safety skirting, safety tape switch, and semi-portable, portable and fork pockets.

Models Available:

Model No.	Capacity (lbs.)	Std. Plat. Base	Low HT (In.)	Raised HT (In.)	Up Spead	Volt/HP/HZ
3HD34-80	8,000	36 x 48	12	46	25 Sec	576/3/60
3HD34-100	10,000	36 x 48	12	46	28 Sec	576/3/60
3HD34-120	12,000	36 x 48	12	46	45 Sec	576/3/60
3HD42-80	8,000	36 x 60	12	54	25 Sec	575/3/60
3HD42-100	10,000	36 x 60	12	54	42 Sec	575/3/60
3HD42-120	12,000	36 x 60	12	54	49 Sec	575/3/60
3HD48-80	8,000	36 x 72	12	60	32 Sec	575/3/60
3HD48-100	10,000	36 x 72	12	60	43 Sec	575/3/60
3HD48-120	12,000	36 x 72	12	60	50 Sec	575/3/60
4HD34-80	8,000	48 x 48	12	46	25 Sec	575/3/60
4HD34-100	10,000	48 x 48	12	46	28 Sec	575/3/60
4HD34-120	12,000	48 x 48	12	46	45 Sec	575/3/60
4HD42-80	8,000	48 x 60	12	54	25 Sec	575/3/60
4HD42-100	10,000	48 x 60	12	54	42 Sec	575/3/60
4HD42-120	12,000	48 x 60	12	54	49 Sec	575/3/60
4HD48-80	8,000	48 x 72	12	60	32 Sec	575/3/60
4HD48-100	10,000	48 x 72	12	60	43 Sec	575/3/60
4HD48-120	12,000	48 x 72	12	60	50 Sec	575/3/60
