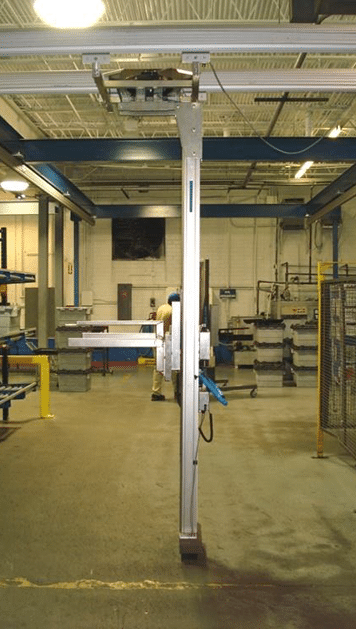

Lift-N-Glide Hybrid Lifter
The Lift-N-Glide is a Hybrid lifter that utilizes the benefits of crane systems and the modular components of the 19000 Series Lift-O-Flex.
The Lift-N-Glide delivers diverse handling components for mid to heavy-weight lifting load capacities up to 500 lbs. It has been designed to simplify handling, transportation, and lifting of goods and can be equipped with a multitude of different attachments and load carriers.
The Lift-N-Glide Hybrid Lifter is controlled by a remote. The Lift-N-Glide can also be built on a rail system or tower with arm, giving your facility the ergonomic handling solution you need, no matter where it is.
attachments
EXPAND-O-TURN

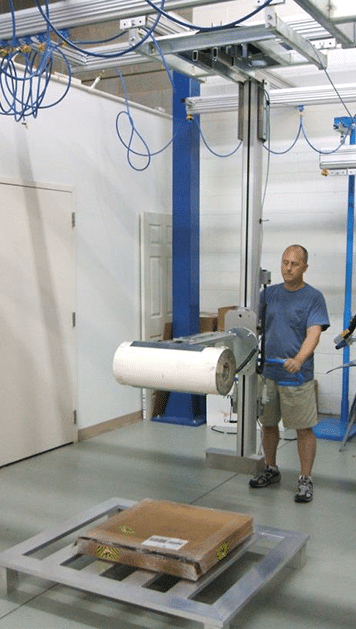

Electric core expander for paper and film rolls.
Squeeze-O-Turn

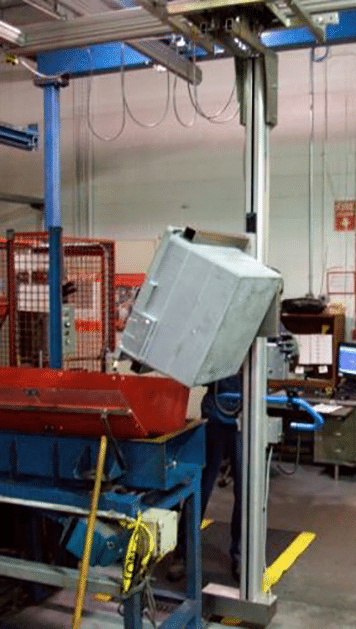

Lifting device to support drum handling and goods requiring rotation.
Lift-O-Turn
End-effector that can be equipped with different arms to handle various products that need rotating.
Vacuum
End-effector that features adjustable magnets allowing lifting of up to 200 lbs.
forks
Fixed or adjustable forks for material handling where space is limited.
Load Platform
Allow operators to handle totes, boxes, roles and pails. Available in standard and custom sizes.
Core Probe
Available in a fixed or wheeled model, used to handle rolls from pick up to drop off.
Custom
We also offer custom solutions to meet your individual needs.
Talk to a specialist today
Lift-N-Glide Features and benefits
| Features and Benefits | |
|---|---|
| Lift Capacity | Up to 500 lbs |
| Anodized Aluminum Profiles |
|
| Steel (Powder Coated Paint-Optional SS) |
|
| Bolted Connections | |
| Standard and Custom Length Lift Masts | |
| Lift Mast Slip Clutch on Down Movement | Provides Safe Load Handling |
| Current Limiting (No Limit Switches) | Provides Load Limiting and Stops |
| Totally Enclosed Lift Mast with Ball Screw | Smooth Up and Down DC Powered Movement |
| Electronic Power Pack |
|
| 360° Swivel for Load Handling Access | |
| Ceiling Hung or Free Standing | |
| Detachable Remote Controller | Operator Control Over Load Handling Functions |
| Adjustable Handlebar | Achieves Ergonomic Operation |
Lift-N-Glide Specifications
| Specifications | Details |
|---|---|
| Lift Stroke (19000 Series Mast) | 54", 73.75", 93.25" |
| Lift Speed | 4" per Second |
| Lift Capacity | Up to 500 lbs |
| Power Requirements | 24V/DC |
| AC/DC Converter or Charger | 110V/AC |
| MovoMech® Rail | Manual |
| Powered Options | Electrical or Pneumatic |
| Rotator | 360° With or Without Brake |
| Available End-Effector Options |
|
Regulations
All of our Material Handling solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20.
