MORStak Drum Racker

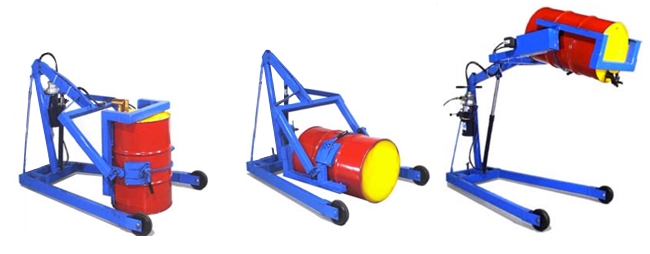

The MORStak Drum Racker gives you the ability to lift drums on and off racks, pallets, trucks, etc. This Drum Racker is able to lift an upright drum, place it in a horizontal position and rack rimmed 55-gallon steel or plastic drums side by side with almost no clearance between them.
Built-in safety mechanisms include a “belly-button” switch that helps prevent an operator from being pinned between the Drum Racker and another object. A “dead-man” break occurs when a spring-loaded handle is released, turning off all electrical power and stopping the machine. The internally mounted 24V battery has a built-in “smart” charger to provide only the amount of charge necessary, with a battery life of approximately 8 hours.
benefits of a drum racker
- Efficient drum handling: Drum rackers provide a streamlined solution for lifting, transporting, and racking drums, saving time and effort.
- Enhanced safety: With secure drum racking capabilities, they minimize the risk of accidents and injuries associated with manual drum handling.
- Increased productivity: Drum rackers enable quick and easy drum placement on racks, optimizing workflow and enhancing operational efficiency.
- Drum Lift. The MORStak Drum Racker Model 910 is power propelled (PILOT), and has a maximum lift height of 10.5 feet and a domestic ship weight of 2350 pounds.
- Drum Handling. This drum handling unit allows for you to control the travel with its ergonomic twist grip or thumb control, and it has a maximum travel speed of 3 miles per hour or 4.4 feet per second.

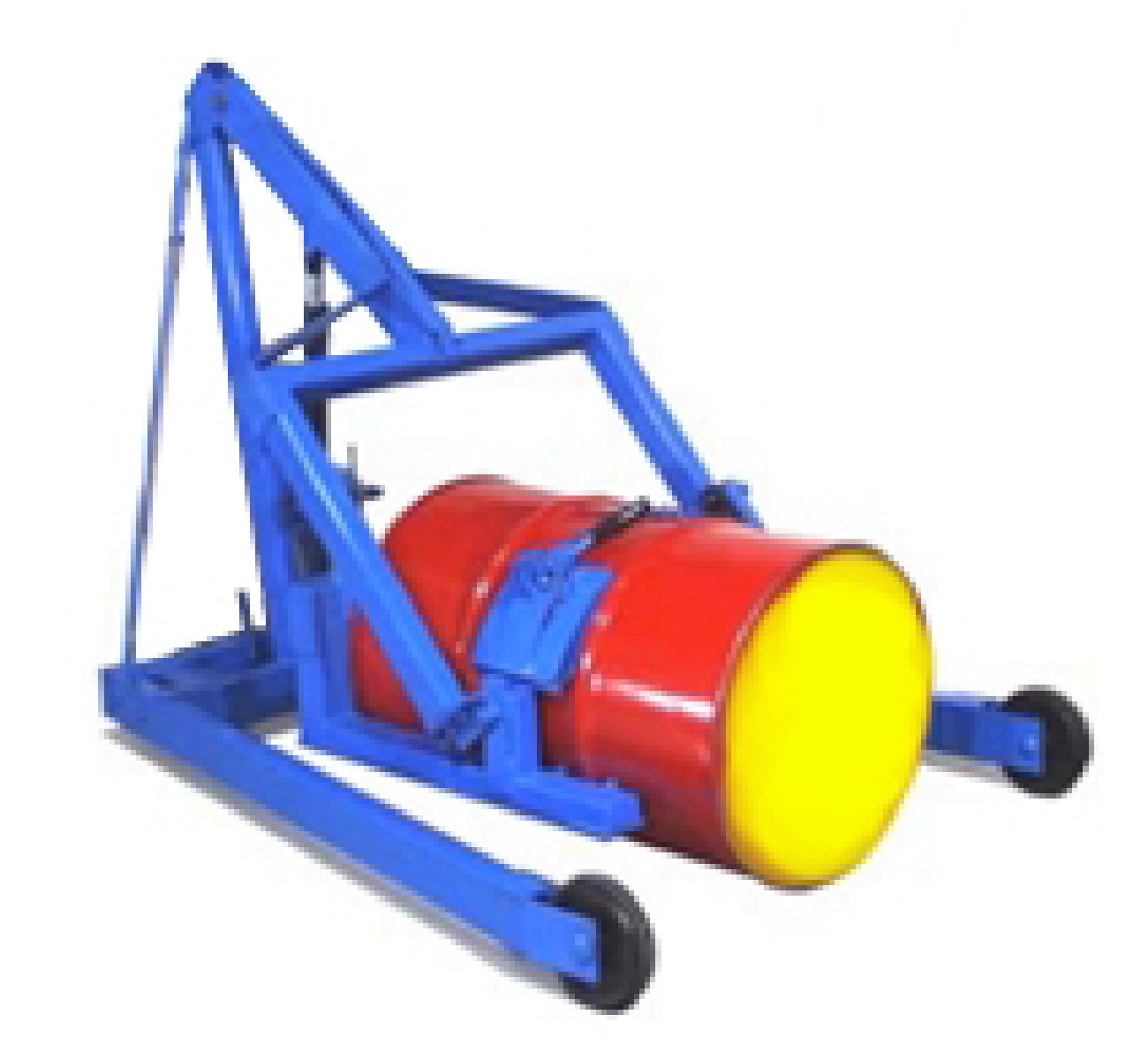

- Movement This Drum Racker is able to lift an upright drum & place it in a horizontal position and rack rimmed 55-gallon steel or plastic drums side by side.
- Weight Capacity. 800 lbs capacity
- Design For Lifting and moving drums weighing up to 800 lbs.
- Controls. Push Buttons
- Safety Features Built-in safety feature controls prevent accidental release of the drum
- Number of Users. 1 User
Clamp Cart Door End Effector
This manufacturing plant required an end effector which would help them move parts such as the portable cart door
Ergonomic Lift Assist
Ergonomic custom design and build of a lift assist to lift and transfer a 23kg automotive part from a conveyor into a weld cell jig.
SS Screen Lifter
A solution we provided to a customer in the food industry to lift these 2 x 48″ diameter screens from the floor level up onto a work platform.
