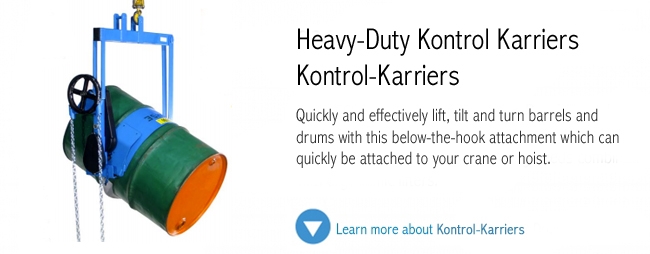

Heavy Duty Kontrol Karriers
With the addition of the Heavy-Duty Kontrol-Karriers to your workplace, you will be able to lift and dispense a drum with your hoist or crane which provides controlled high-level pouring. It is recommended that the MORStop Tilt Break be used with Heavy-Duty Kontrol-Karriers to automatically hold the drum tilt angle until you move it.
For rimless drums, the Bracket Assembly provides a brace at the top and bottom of the drum to prevent it from slipping. For smaller drums, the Drum Adapter is inserted into the drum holder to give you the ability to handle a smaller drum. For a rimmed drum, the Top Rim Clamp grips the upper rim of the drum in order to prevent it from slipping.
- Options & Accessories. Models are available with spark resistant parts or made of stainless steel to meet your entire ergonomic drum handling needs.
- Gripping Mechanism. Heavy Duty Kontrol Karriers can also be ordered with a Hand Crank or Hand Wheel option for use only within the reach of the operator.
- Movement Heavy Duty Kontrol Karriers allow for 360-degree drum tilt control in both directions through the use of a 12-inch-long pull chain control with 30: 1 gear ratio and gear covers.
- Weight Capacity. 1500 lbs capacity for full drums and a
800 lbs capacity for half-full drums. - Design For Lifting and moving drums weighing up to 1500 lbs.
- Controls. Push Buttons
- Safety Features Built-in safety feature controls prevent accidental release of the drum
- Number of Users. 1 User
All of our Material Handling solutions either meet or exceed all applicable regulations which include; OSHA, ANSI and ASME B30.20.
KEY FEATURES
Cost-effective solutions
Engineered for performance without compromising your budget.
Safety First
Reduces risk of injuries and Musculoskeletal Disorders (MSDs).
Customized Systems
Tailored solutions designed to fit the unique needs of your workspace.
Workforce productivity
Improves efficiency and output across all workplace operations.
Employee engagement
Boosts satisfaction and involvement by providing safer & convenient equipment.
Compliance
Meets and exceeds all OSHA and ANSI standards for workplace safety.
Cost savings
Minimizes potential fines and lowers insurance premiums through safer practices.
Quality assurance
Enhances the overall quality and consistency of work performed.
Your Perfect Solution Awaits!
Request a Quote
