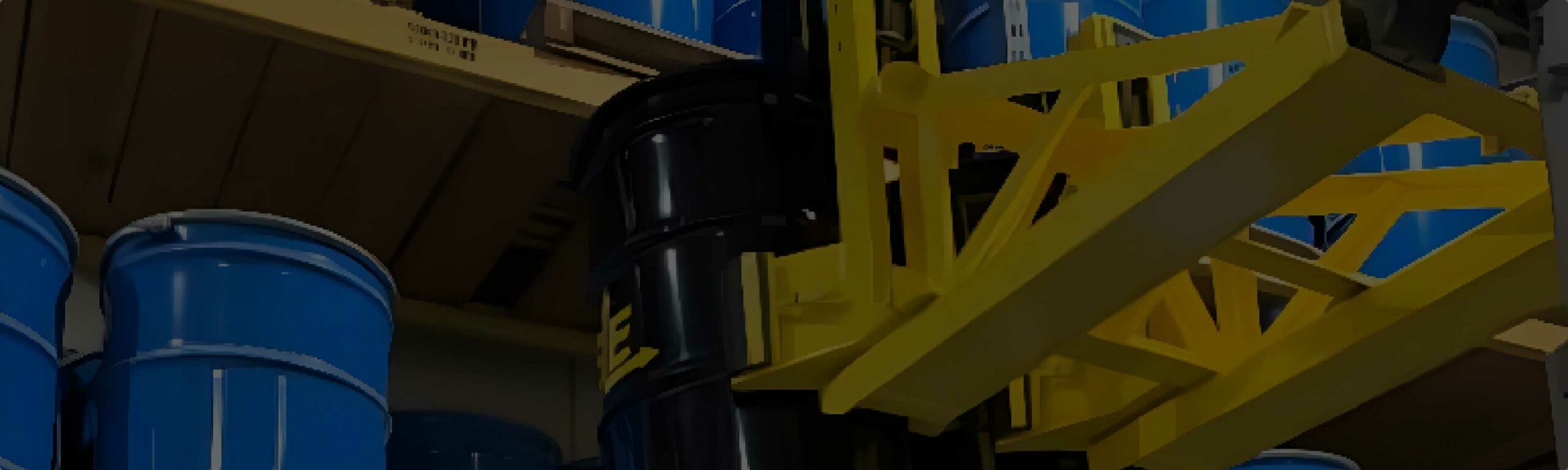

Eagle Grip 4 Forklift Drum Handling Equipment
The Eagle Grip Forklift Drum Handling equipment are designed with double articulating clamping mechanisms which allow for the handling of steel, plastic and fibre chimed drums in high volume applications.
These drum lifters provide one of the safest available methods of lifting and transporting chimed drums when using a forklift truck. The clamping mechanisms used are completely mechanical and require no hydraulic or electrical connections. Each drum is picked up with two upper and lower jaw in heads which are spaced 6” apart.
In addition to their double articulating clamping mechanisms, the Eagle Grip Forklift Drum Handling equipment is also designed with durability in mind. Built with heavy-duty materials, these drum lifters can withstand the wear and tear of high volume applications. With the Eagle Grip Forklift Drum Handling equipment, you can efficiently and safely handle a wide variety of chimed drums, making it an essential tool for any material handling operation.
why use Forklift Drum Handling Equipment
Increased efficiency: With these forklift attachments, you can safely and efficiently move drums throughout your facility, reducing the time and effort required to do so manually.
Improved safety: By using these drum handling units, you can greatly reduce the risk of employee injury and accidents associated with manual handling of heavy drums.
Customizable options: With multiple models available, you can choose the forklift attachment drum handling unit that best fits your specific needs, ensuring that you have the right equipment for the job.
Protection for your drums: The optional belt can help prevent cosmetic damage to the lower side of the drum, keeping your equipment in good condition and reducing the need for maintenance or replacement.
Pit Mounted Drive on Lift Table with Safety Skirt
Opening in wire mesh dunnage allows the operator to safely and ergonomically load or unload parts in and out of the dunnage.
Vacuum End Effector for Warehouse
This warehouse needed a way to lift a variety of different items up, without damaging them.
Roll Handling System
R&D Ergo successfully supplied and installed this roll-lifting solution to one of our amazing customers in the food manufacturing industry located in southern Ontario.
| Model | Capacity | Weight | Dimensions H x L x W | Drums | Attachment Mounting | |
|---|---|---|---|---|---|---|
| (lbs/kg) | (lbs/kg) | (inches) | (mm) | Handled | ||
| EG4DCM-CM | 2000/907 | 110/50 | 35x15x18 | 838x381x457 | 1 | Carriage Mount |
| EG4DCM-NF | 2000/907 | 253/115 | 37x47x24 | 940x1194x610 | 1 | Narrow Fork Mount |
| EG4DCM-NFQC | 2000/907 | 341/155 | 42x47x24 | 1067x1194x610 | 1 | Narrow Fork Mount |
| EG4DCM-F | 2000/907 | 330/150 | 37x47x33 | 940x1194x838 | 1 | Adjustable Fork Mount |
| EG4DCM-FQC | 2000/907 | 418/190 | 42x47x33 | 1067x1194x838 | 1 | Adjustable Fork Mount |
| EG4DCM2-F | 4000/1815 | 432/196 | 37x47x33 | 940x1194x838 | 1 or 2 | Adjustable Fork Mount |
| EG4DCM2-FQC | 4000/1815 | 520/236 | 42x47x41 | 1067x1194x1042 | 1 or 2 | Adjutable Fork Mount |
Contact us today in order to start reducing the danger that may be occurring in your workplace!
