Lift’n Buddy Series 4

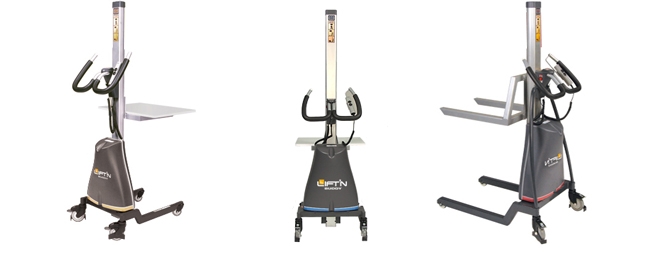

The Lift’n Buddy Series 4 combines the convenience of use of a 4-wheel transporter with the ease of powered lifting. This lifting machine has the ability to lift 185 to 445 pounds and is perfect for a variety of office, laboratory, industrial and retail applications. This unit uses a continuous lifting chain to eliminate hydraulic fluid leaks and deliver exact load positioning with zero drift.

Some advantages of this piece of material handling equipment include: it is available with lifting forks or a solid platform, it has two lowering & lifting speeds, it has a battery charge status indicator, its ball bearing wheels roll effortlessly onto any surface, it will not blind even with off centre loads, and it comes with an onboard battery charger that plugs into a 115V outlet.

Model Number	LNB4-185	LNB4-220	LNB4-450
Load Capacity	185 pounds	220 pounds	445 pounds
Raised Height	56 inches	65 inches	52 inches
Lowered Height	5 inches	5-1/1 inches	4-1/8 inches
Dim. H x W x L	63 x 23-1/2 x 31 inches	76 x 23-1/2 x 33 inches	63 x 22 x 40 inches
Platform	23-1/1 x 18-1/2 inches	23-1/2 x 18-1/2 inches	22 x 23-1/2 inches
Lifting Speed	17 seconds	20 seconds	22 seconds
Power Unit	24VDC	24VDC	24VDC
